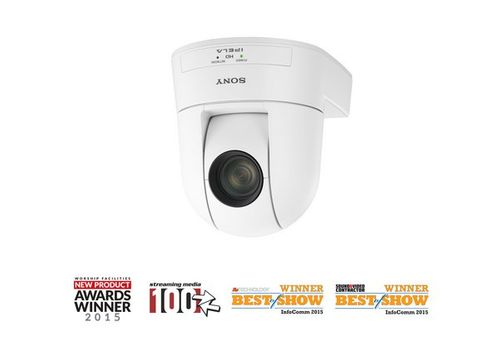

Sony 1080/60P 3-G-SDI AND LIVE IP STREAMING PTZ CAMERA - White - SRG-300SE/W

Sony 1080/60P 3-G-SDI AND LIVE IP STREAMING PTZ CAMERA - White - SRG-300SE/W

Part Number: SRG-300SE/W
Our Price: $2,699.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1080/60P 3-G-SDI AND LIVE IP STREAMING PTZ CAMERA - White

Sony continues to expand its popular SRG PTZ Camera line up with the introduction of the SRG-300SE (black) and SRG-300SE/W (white) 3G-SDI and Live IP Streaming cameras. The SRG-300SE builds on the SRG-300H's full HD (1080/60p) imaging, pace-setting 30x optical zoom and offers 3G-SDI interface for long distance, single cable transmission of 1080/60p 4:2:2 broadcast quality baseband digital video. The new SRG-300SE can simultaneously output 3G-SDI and live IP streaming content. The new camera features 30x optical zoom plus 12x digital zoom with a 65-degree viewing angle to produce H.264 IP video streaming with selectable bit rates. It can also simultaneously output 1920 x 1080/60p video over a single BNC cable through 3G-SDI that can run approximately 70m or more, easing installation and adding more flexibility to customer's live production needs. It also features an expanded menu of pre-set options from 16 up to 256 and can be operated either by VISCA™ serial control or through an IP-based computer interface capable of remote operation. Audiences in overflow rooms to remote venues can monitor the event live and control and pan/tilt/zoom functions of the camera over IP. This enhanced learning experiences for interns at teaching hospitals and lets sports viewers feel like they are at the stadium. Designed primarily for small to mid-sized venues, these new cameras are ideal for a single source PTZ camera with Sony's renowned high picture quality and reliability at an affordable price. The SRG-300SE is certified to WORK WITH WOWZA Media Systems for simple and effective integration via Wowza Streaming Engine™ server software.

Key Features
  • 1/ 2.8" Exmor® CMOS Sensor - 1080/60p ,1080/60i , 720/60p
  • High 30x Optical Zoom (12x Digital Zoom)
  • Simultaneous 3G-SDI and IP H.264 Full HD streaming
  • 65 Horizontal Wide Field of View
  • View-DR® Wide Dynamic Range Technology - Ideal for extreme lighting conditions
  • XDNR® (eXellent Dynamic Noise Reduction) Technology helps to provide clear Images in low-light conditions
  • Network Port 10BASE-T /100BASE-TX (RJ-45)
  • Up to 256 camera preset positions
  • Web Viewing Function for remote camera control up to 20 clients
  • Control via RS-422
  • Desktop or Ceiling mountable with Image E:Flip Function
  • Pan/Tilt Angle: Pan +/- 170 Tilt: +/-90 / 20

Specifications

Camera SpecificationsDetail:
Image Device1/2.8 Exmor CMOS
Effective PixelsApprox. 2.1 Megapixels
Lens30x Optical Zoom / 12x Digital Zoom
Minimum Object Distance10mm (wide) - 1200 mm (tele)
Auto ExposureAuto, Manual, Priority, AE (shutter, iris), Exposure Compensation, Blight
Shutter Speed1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system)
GainAuto/Manual (0 to +43 db)
White BalanceAuto, Indoor, Outdoor, One-push auto, ATW, Manual
Pan Angle/SpeedPan 100 degrees/sec
Tilt Angle/SpeedTilt 90 degrees/sec
Horizontal Viewing Angle63.7 degree (wide)
Preset Positions256 - Position number 17 to 256 are stored as PTZF only
Interface SpecificationsDetail:
Camera Control Interface3G-SDI HD Video Output
RS-422 Serial Interface
Video Output SpecificationsDetail:
Horizontal Resolution1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, (H.264, JPEG)
Minimum Illumination1.4 lux (F1.6, 50 IRE, high sensitivity mode OFF, 30 fps)
2.8 lux (F1.6, 50 IRE, high sensitivity mode OFF, 60 fps)
0.35 lux (F1.6, 50 IRE high sensitivity mode ON, 30 fps)
0.7 lux (F1.6, 50 IRE, high sensitivity mode ON, 60 fps)
S/N Ratio50 dB
Video Output3G-SDI HD Video Output
RS-422 Serial Interface
Signal System1080/59.94 (A/B), 50p (A/B), 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50p, 29.97p, 25p
General SpecificationsDetail:
Dimensions (W x H x D)157 x 164 x 163 mm (6-1/4 x 6-1/2 x 6-1/2 inches)
WeightApprox. 1.4kg (3lb. 1.4 oz)
Power RequirementsDC 12V (DC 10.8 to 13.2V)
Power Consumption16.8W
Operating Temperature0C to 40 C / 32F to 104 F
Storage Temperature-20 C to +60C / -4 F to 140 F
