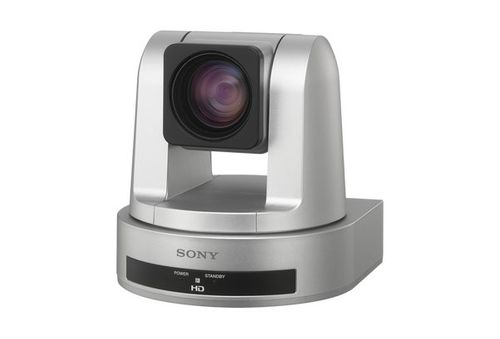

Sony 12x 1080p 3G-SDI PTZ Camera - SRG-120DS

Sony 12x 1080p 3G-SDI PTZ Camera - SRG-120DS

Part Number: SRG-120DS
Our Price: $1,749.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


12x 1080p 3G-SDI PTZ Camera

Sony continues to expand its popular SRG PTZ Camera line up with the introduction of the SRG-120DS 3G-SDI HD PTZ Camera. This camera should be considered an alternative for Sony's recently discontinued EVI-HD1 camera. This affordable professional 1080/59.94p Full HD and 71wide field of view desktop camera is designed for videoconferencing, health-care training, monitoring and consultative purposes as well as lecture capture applications. The SRG-120DS camera inherits the same enhanced features found in the existing SRG family of cameras, but is equipped with 3G-SDI for long distance system integration.

Key Features
  • High Sensitivity Sensor: - The SRG120DS incorporates Sony's latest 1/2.8-type Exmor® CMOS sensor that enables the capture of smooth, crisply detailed, Full HD (1920 x 1080) images with extremely low noise even in low lighting conditions. Plus its high frame rate (60fps) operation helps to ensure smoother, more fluid reproduction of moving subjects.
  • Clear Images in Harsh or Backlit Lighting Conditions: - Similar to the previous SRG cameras, the SRG-120DS features Sony's View-DR® technology (wide dynamic range) to compensate for extreme backlight or harsh lighting conditions. In addition, its XDNR® technology reduces noise and provides clear images in low lighting conditions.
  • Get Ready for Your Close Up: - The SRG-120DS's 12x optical zoom range is complemented by 12x digital zoom (total 144x High Power Zoom), for frame-filling close-ups with every detail seen clearly. Responsive auto-focus ensures that images stay clear and sharp, even at high zoom settings. And the SRG-120DS's extremely wide field of view (71o) makes it ideal for small- to mid-sized rooms.
  • Built-in IP Control and RS-232C: - This camera can be controlled via the VISCA protocol over IP connections as well as via serial RS-232C. The SRG-120DS is compatible with Sony's RMIP10 IP Controller.


Camera SpecificationsDetail:
Image Device1/2.8 Exmore CMOS Sensor
Effective PixelsApproximately 2.1 megapixels
Lens12x Optical Zoom/12x Digital Zoom
Lens ValueFocal Length 3.9mm F (wide) / 46.8mm F (tele) / F1.8 to 2.0
Minimum Object Distance10mm (wide end) / 1500mm (tele end)
Auto ExposureAuto/Manual/Priority AE/Exposure Compensation Bright
Shutter Speed1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system)
GainAuto/Manual (0 to +43dB)
White BalanceAuto, Indoor, Outdoor, One-push Auto, ATW, Manual
Pan Angle/SpeedAngle: +/- 100 degrees
Tilt Angle/SpeedAngle: +25 degrees / -25 degrees
Horizontal Viewing Angle71 Degrees (Wide)
Preset Positions16 presets
Focus SystemAuto/Manual
Sync SystemINT
Wide Dynamic RangeYes (View-DR)
Interface SpecificationsDetail:
Camera Control InterfaceVISCA Protocol with built-in IP Control
RJ-45 / RS-232C
Video Output SpecificationsDetail:
Horizontal Resolution1,000 TV Line (Center)* Typical
Minimum IlluminationHigh Sensitivity Mode: 0.4 lx (50 IRE, F1.8, 30 FPS)
Normal Mode: 1.8 lx (50 IRE, F1.8, 30 FPS)
S/N Ratio50 dB
Video OutputHD - 3G-SDI
Signal System1080/59.94p, 50p, 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50p, 29.97p, 25p
Horizontal Resolution ValueHigh Definition
Minimum Resolution1.8 lx (50 IRE, F1.8, 30 fps)
General SpecificationsDetail:
Dimensions (W x H x D)153 x 156 x 153 mm
WeightApproximately 1,600g
Power RequirementsDC 12V
Power Consumption16.8W
Operating Temperature0 C to 40C (32F to 104F)
Storage Temperature-20C to +60 C (-4 F to 140F)
