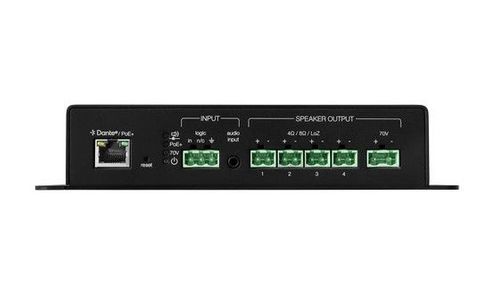

NETWORKED DANTE LOW IMP/70V PoE+ Powered Multichannel Amplifier - MXN-AMP

Multichannel PoE+ powered amplifier designed for speech and program audio reproduction in meeting rooms. The Microflex® Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.

Powerfully Simple
• Can power up to 4 MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
• Rated at 14.5 watts of combined output power.


Unmatched I/O Flexibility
• Four Dante inputs and four Dante outputs.
• Unbalanced stereo analog audio input.
• Logic input (switches between presets 1 and 2 as defined in web UI).


Dial In Great Sound
• Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator.
• Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP control software.


Easy Installation
• Can be rack mounted with available CRT-1 rack tray.
• Can also be wall or ceiling mounted. (Note: Shure recommends the use of an additional safety tether for overhead components).
• UL 2043 Plenum rated.


Confident Communication
• Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
• Shure Audio Encryption keeps audio content protected between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.


Certified For Success
• Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

• 1 Microflex® MXN-AMP PoE Powered Amplifier
• 1 Logic input block connector
• 4 LoZ output block connectors
• 1 70V output connector
• 2 1/4” screws, #4-40 UNC thread
