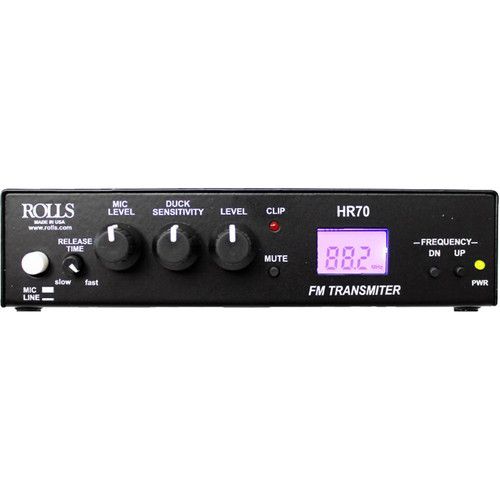

Rolls HR70 Digital FM Transmitter

The HR70 FM Digital Transmitter from Rolls is designed to receive an audio signal from the built-in XLR or RCA input jacks and broadcast the audio via FM radio. Select the frequency on which you would like to broadcast those signals—87.5 to 108 MHz—and you are now sending signals via FM radio. The HR70 is equipped with power LED and clip LED indicators, and a frequency response of 20 Hz to 12.5 kHz. In addition, there is a built-in talk-over circuit. An

• FM antenna is also included.
• All-metal chassis
• LCD display showing the active information relevant to the current operation of the HR70
• Aux input and line input
• RCA stereo outputs
• XLR microphone input
• USB port to power the HR70
• Includes power supply

SPECIFICATIONS


• Frequency Response: 20 Hz - 12.5 kHz
• Input Impedance: 100KΩ Unbalanced, 600Ω Balanced
• Indicators: Power LED and Clip LED

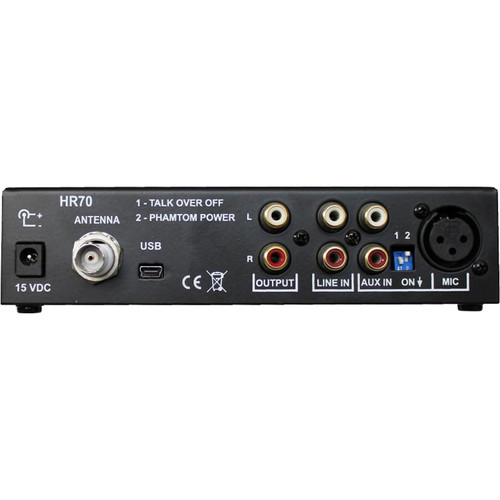

• Input/Output jacks: XLR balanced INPUT, RCA unbalanced input and output
• Power: Rolls PS27s, 12 - 15 VDC 500mA, 5 x 1.2 mm DC Jack - Center Negative
• Antenna Jack: BNC connector
• Antenna Impedance: 75Ω
• Current: 150 mA
• Tuning Range: 87.5 - 108 MHz
• Dimensions: 6.75"w x 4.25"d x 1.6"h
• Weight: 1.5 lbs
• UPC: 675889007015
