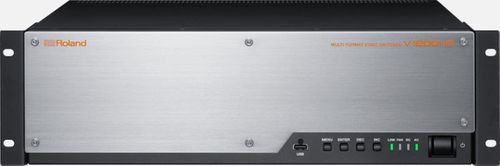

Roland Multi-Format Video Switcher - V-1200HD

Hybrid Engine 2 M/E Switcher and Processor for Broadcast and Live Events

A comprehensive and flexible multi-format video switcher giving you complete control of video sources, key layers and mixing engine configurations. The V-1200HD introduces a unique flexible hybrid engine with 4:2:2 broadcast switcher and 4:4:4 live event switcher. In addition to powerful video capabilities, the V-1200HD also has a built-in 16-channel audio mixer.

• 10 SDI and 4 HDMI inputs, and 6 SDI and 2 HDMI outputs
• 4:2:2/4:4:4 hybrid engine
• The 4:2:2 process functions as a 2 M/E switcher that is able to switch 2 M/E, 1.5 M/E, and 1 M/E.
• The 4:4:4 process functions as a multi-format processor that supports live presentation, split-screen, and matrix output.
• Up to 92 Inputs/Outputs 16-channel audio mixer
• Control of up to 7 remote cameras
• Optional control surface with a T-fader and dual displays
• All switcher functions can be operated from a computer using remote control software, V-1200HD RCS
• Input/output expandable via expansion slots
