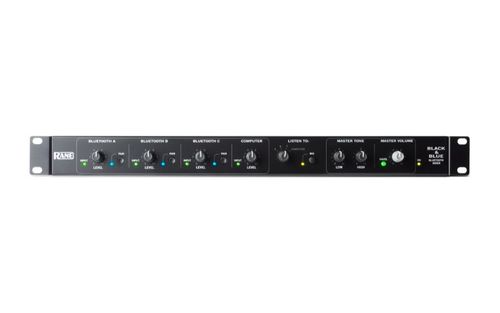

RANE 3 BT Inputs, USB I/O, 3.5mm Line Input, XLR Line Output, 20W Mono Amplifier - Black & Blue

Bluetooth® Mixer

The Black & Blue is a simple, mono input-selector/mixer/amplifier with (3) discreet channels of Bluetooth®, 3.5mm line input, and USB computer link for playback or recording. Inputs can be selected for monitoring individually, or all inputs mixed at once.

Meeting Rooms (Bluetooth® A headworn mic, computer program through USB, XLR line out to powered speakers). Unit in mixer mode for mixing sources.

Coffee Bar (Bluetooth® A mobile device, Bluetooth® B is TV audio, Bluetooth® C is barista headworn mic for calling orders...amplifier out to full-range speakers and XLR out to subwoofer. Unit in mixer mode for mixing sources.

Trade Show (Bluetooth® A is tablet streaming music, Bluetooth® B is presenter headworn mic...XLR out to powered speaker, and USB out streams to laptop computer to record the presentation. Unit in mixer mode for mixing sources.

• 3 discreet Bluetooth®-registered inputs with individual volume controls and antennas
• Pairing buttons and status LEDs (blue) for each Bluetooth® input
• Class compliant USB audio for computer recording and playback
• 3.5mm line input (disconnects USB input audio)
• Pre-fader signal LEDs (green) on each channel
• Source selector for solo monitoring or Mix All mode
• Shelving Bass and Treble Mix EQ
• Master volume control with 3-color LED (green, yellow, red)
• Power LED (yellow)
• XLR line output (+20 dBu balanced)
• 20W mono Class-D amplifier
