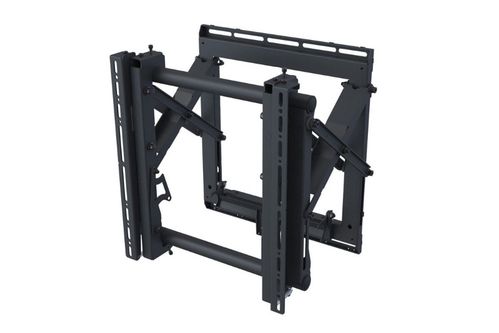

Press & Release Mount for Video Walls in Portrait Orientation
The LMVP Press & Release™ Pop Out Mount is a flat panel mount built especially for video wall applications. The LMVP has the same great features as the LMV, but is built for video wall displays hanging in a portrait orientation. What makes the LMVP unique is that you can have access to the back of the display in under 5 seconds. Featuring a depression clasp that automatically latches closed and springs open with a gentle push on the bezel of the display, this makes servicing video walls easier than ever, especially a middle panel.
Once pressed and opened, the LMVP extends out allowing back of display access. A service-position kickstand offers an additional 16° of clear access to the rear of the display. With an open design, it is easy to manipulate cables or media players without having to deal with the traditional string release designs. In addition, the LMVP's scissor design adds additional stability upon mount extension.
Fine-tune adjustments are key to any video wall installation, that's why we have included convenient X, Y and Z adjustments knobs.
Included with every 4 LMVP purchased is a metal, display model-specific spacer that makes it easy to configure your video wall design.
|Shipping Weight :||42.7 lb. | 19.37 kg|
|Weight Capacity per Mount :||160 lb. | 72.57 kg|
|Number of Mounts :||1|
|Total Weight Capacity :||160 lb. | 72.57 kg|
|Width :||19.9 in. | 505.46 mm|
|Height :||24.7 in. | 627.38 mm|
|Depth :||5.1 in. | 129.54 mm|
|Mounting Pattern Type :||Range|
|Mounting Pattern :||200 x 200 (Min) , 400 x 600 (Max) mm|
|Typical Display Sizes :||37.00 in. & up|
|Shipping Box DIM Sizes :||28 in. (wide) x 5.3 in. (high) x 28 in. (deep) | 711.2 mm x 134.62 mm x 711.2 mm|
