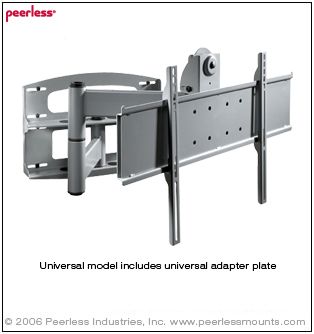

Peerless Articulating Wall Arm with Vertical Adjustment for 37"- 60" Plasma and LCD - PLAV60-UNLP

Peerless Articulating Wall Arm with Vertical Adjustment for 37"- 60" Plasma and LCD - PLAV60-UNLP

Designed for easy installation even in hard to access areas like custom frames and recessed cubby holes, the PLAV60-UNL includes a vertical adjustment feature located within reach behind the screen that enables you to adjust the screen position up to an inch up or down for perfect placement. Swing, tilt and extend your plasma or LCD screen with ease thanks to self-lubricating bushings at every pivot joint. The PLAV60-UNL adjustable tilt and pivot allow you to position your screen for the optimal viewing angle, making it a great articulating arm, as well as ideal installation tool.

Features:

• +/-1" vertical adjustment located within reach behind screen
• +10°/-5° tilt
• Up to 180° pivot
• +/-7° roll to level screen horizontally at any position
• Universal models extend out to 32.3", retracts to 5.6"
• Mounts to two wood studs or concrete (accessory required)
• Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts

Distance from wall:
Universal Models: 5.6"–32.3" (142–820 mm)
Dedicated Models: 4.5"–31.2" (114–792 mm)

Tilt | Swivel | Roll: +10/-5° | ±90° | ±7°

Max load: 175 lb (79 kg)

Product Dimensions (W x H x D): Universal Models: 30.7" x 21.67" x 5.6"–32.3" (780 x 550 x 142–820 mm)

Dedicated Models: 19.75" x 21.67" x 4.5"–31.2" (502 x 550 x 114–792 mm)

Mounting Surfaces: Wood stud, concrete and metal stud (Metal stud accessory required)

Ship Weight:
Universal Models: 50.6 lb (22.9 kg)
Dedicated Models: 36.2 lb (16.4 kg)
