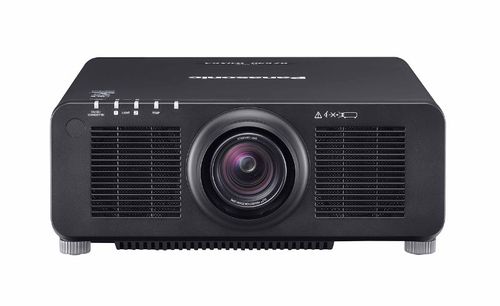

Panasonic PT-RZ690BU Laser Projector

Panasonic PT-RZ690BU Laser Projector

Part Number: PT-RZ690BU
Our Price: $7,528.00
Availability: Usually ships the same business day


Panasonic PT-RZ690BU Laser Projector

Compact and Flexible 1-Chip DLP™ Projectors Deliver Elite Color Performance in Any Exhibition Space

Power to Impress with Accurate Colors

Deepen immersion in any environment with rich, accurate colors thanks to Panasonic’s original Quartet Color Harmonizer color-wheel optimization and 1-Chip DLP™ imaging technology.

Easy to Install and Integrate

With versatile apps and functions, diverse optional lenses, support for 4K input signals*4, and separate DIGITAL LINK and LAN terminals, these projectors reduce installation hassles with convenient flexibility.

Reliable Even in Harsh Conditions

Engineered for 20,000 hours*5 of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.

*4 Supports signals up to 4K/60p. 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®.

*5 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:0.67" 1-Chip DLP
Brightness:6,000 lm (Normal) / 6,200 lm (Center) / 4,800 lm (Eco) / 2,400 lm (Long Life 1) / 2,000 lm (Long Life 2) / 1,600 lm (Long Life 3)
Contrast Ratio:10000:1
Video Signals:NTSC, PAL, SECAM; Computer signals up to 4K (3840 x 2160)
Aspect Ratio:16:10
Number of Colors:Full Color
Lamp:SOLID SHINE Laser Light Engine
Typical Lamp Life:20,000 Hours (NORMAL)/24,000 Hours (ECO)
Lens:Powered zoom, powered focus F 1.7-1.9, f 25.6-35.7mm
Throw Ratio:1.7-2.4:1
Image Size:50" - 600"
Throw Distance:N/A
Keystone Correction:Vertical ±45°; Horizontal ±15°
Projection Methods:Front/Rear; Ceiling Mount/Tabletop
Inputs:HDMI x 1
DVI x 1
VGA x 1
5BNC x 1
BNC x 1
RJ45 x 2
RS232 x 2
Wired Remote In x 2
Outputs:Wired Remote Out x 1
Speaker:No Speaker
Audible Noise:40 dB (Normal) / 36 dB (Quiet 1) / 35 dB (Quiet 2)
Weight:50.7 lbs.
Dimensions:19.6" x 7.9" x 22.9"
Remote Control:Remote Control Included with Batteries
Mfg Warranty:3 year projector warranty
Product Data Sheet: Product Data Sheet
