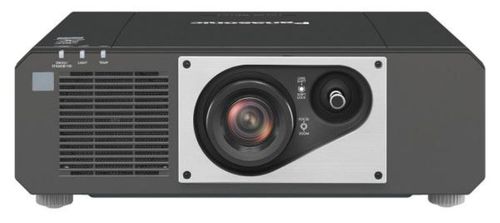

Panasonic PT-FRZ50BU7 Laser Projector

Panasonic PT-FRZ50BU7 Laser Projector

Part Number: PT-FRZ50BU
Our Price: $3,387.00
Availability: Usually ships the same business day
Projector Calculator


Panasonic PT-FRZ50BU Laser Projector

Color-rich DLP™ Projectors Offer Dynamic Pictures with Flexible Integration into Classroom, Office, or Exhibition

Optimized for Color and Contrast

Quartet Color Harmonizer is an original color-wheel technology with optimized optical design. It modulates light-output to color requirements, achieving pure white for beautifully accurate color reproduction without sacrificing brightness. Rich Color Enhancer adjusts color-wheel timing for deeper color saturation. With uniformity assured by DLP™ imaging and Dynamic Contrast 2, single- or multi-screen projections immerse you completely.

Flexible Install, Stress-free Setup

PT-FRZ60/FRZ50 features a 2.0x zoom lens for flexible projector location, making installation easy. PT-FRZ55 has a powered 0.8:1 short-throw lens for shadow-free rear-projection in control rooms or at exhibitions. All models include V/H Lens-Shift, V/H Keystone Correction, and Curved-Screen Correction, and share the same lenses and mounts as their previous corresponding models for stress-free renewal.

Smooth System Integration

Compatibility with 4K/60p input signals*1 enables easy integration into a 4K display network, while two CEC-ready HDMI® inputs and USB-DC outlet connect streaming devices*2 or PressIT*3, Panasonic’s new one-touch Wireless Presentation System. Separate LAN terminal for IP control frees DIGITAL LINK for video.

Silent, Reliable Projection

Multi-Laser Drive Engine*4 modules have Failover Circuitry*5 to prevent dimming in the event of diode failure. Airtight DMD block and filterless cooling enable 20,000 hours*6 maintenance-free projection with quiet 27 dB*7 operation. Reliability is reinforced with optional Early Warning software*8.

Key Features
  • Daylight View Basic
  • Detail Clarity Processor 3
  • Quick Start and Quick Off
  • Free 360 ° body rotation
  • Auto Image Rotation
  • Edge Blending and Color Matching
  • Multi Monitoring & Control Software with optional Early Warning functions*8
  • ECO Management System

*1 Uncompressed 4K/60p signal input supported via DIGITAL LINK and HDMI. 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.

*2 Compatibility with third-party devices is not guaranteed. Devices sold separately.

*3 Optional WP Series Wireless Presentation System on sale from September 2020 (availability may vary by country or region).

*4 Rate of brightness decrease varies depending on projector model.

*5 Specifications vary depending on model.

*6 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast 2, temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

*7 For the PT-FRZ50/FRZ55 in Quiet Mode (32 dB in Normal Mode). Operating noise for the PT-FRZ60 is 30 dB in Quiet Mode or 35 dB in Normal Mode.

*8 Early Warning functions (ET-SWA100 Series) are included with free Multi Monitoring & Control Software Ver. 3.0 or later and require a license key and activation after a 90-day trial period expires.


Detailed Specifications
Resolution:WUXGA (1920 x 1200)
Display Device:0.67" 1-Chip DLP
Brightness:5,200 ANSI Lumens; 5,400 Center Lumens
Contrast Ratio:20000:1
Video Signals:N/A
Aspect Ratio:16:10
Number of Colors:Full Color
Lamp:Laser Light Engine
Typical Lamp Life:20,000 Hours
Lens:2.0x manual zoom, manual focus, F 2.0-3.4, f 21.5-43.0mm
Throw Ratio:1.46-2.94:1
Image Size:40" - 300"
Throw Distance:N/A
Keystone Correction:Vertical ±40°; Horizontal ±20°
Projection Methods:Front/Rear; Ceiling Mount/Tabletop
Inputs:HDMI x 2
VGA x 2
Composite Video (RCA Yellow) x 1
3.5mm Stereo Audio x 2
RCA Audio (L/R) x 1
USB Type A x 1
RJ45 x 1
RS232 x 1
Outputs:VGA x 1
3.5mm Mini Jack Audio x 1
Audible Noise:30 dB (Quiet) / 35 dB (Normal)
Weight:35.3 lbs.
Dimensions:19.6" x 6.61" x 19.4"
Remote Control:Remote Control Included with Batteries
Mfg Warranty:3 year parts and labor
Product Data Sheet: Product Data Sheet
