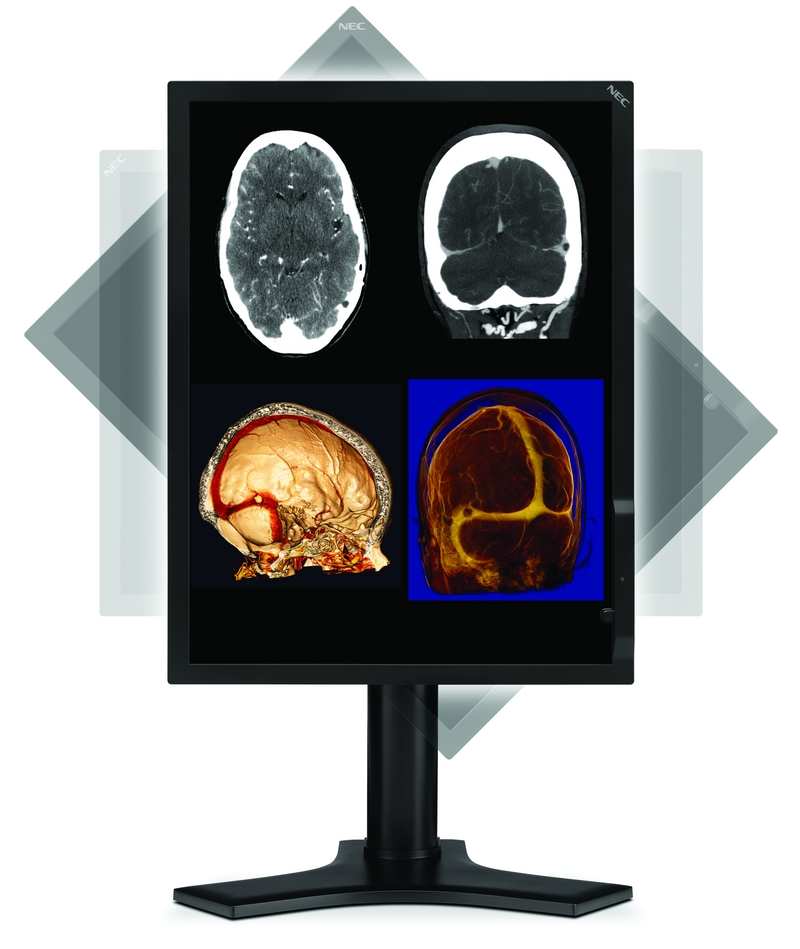

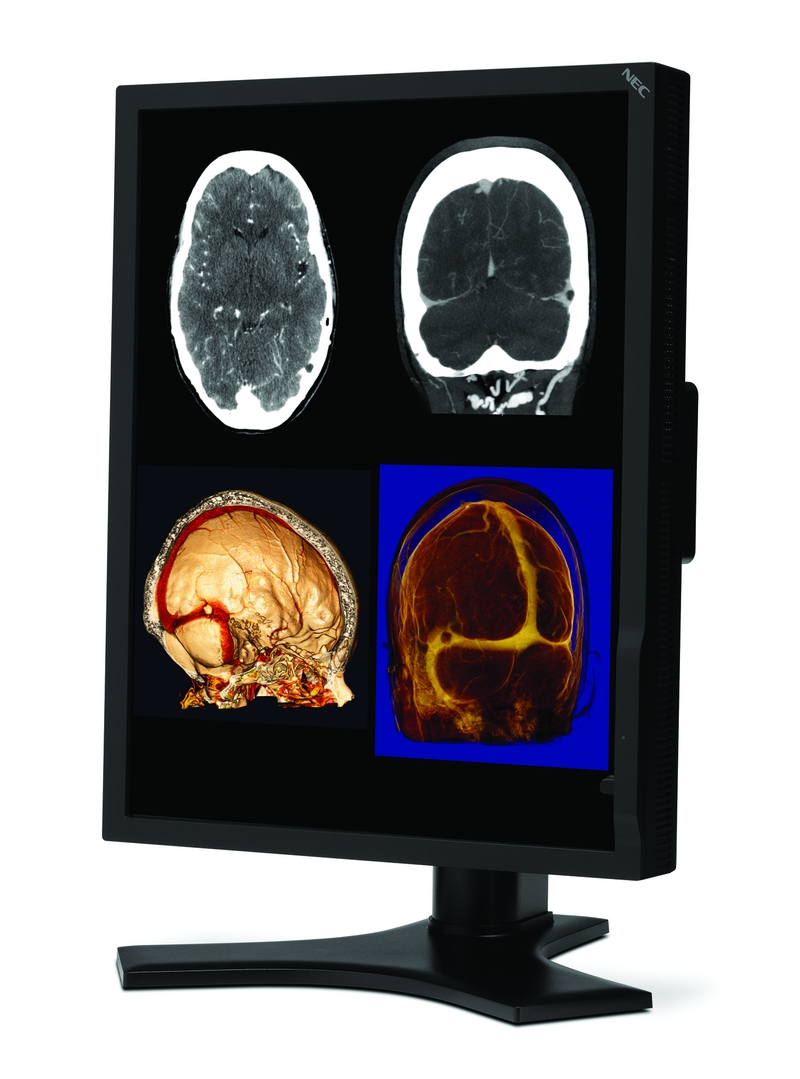

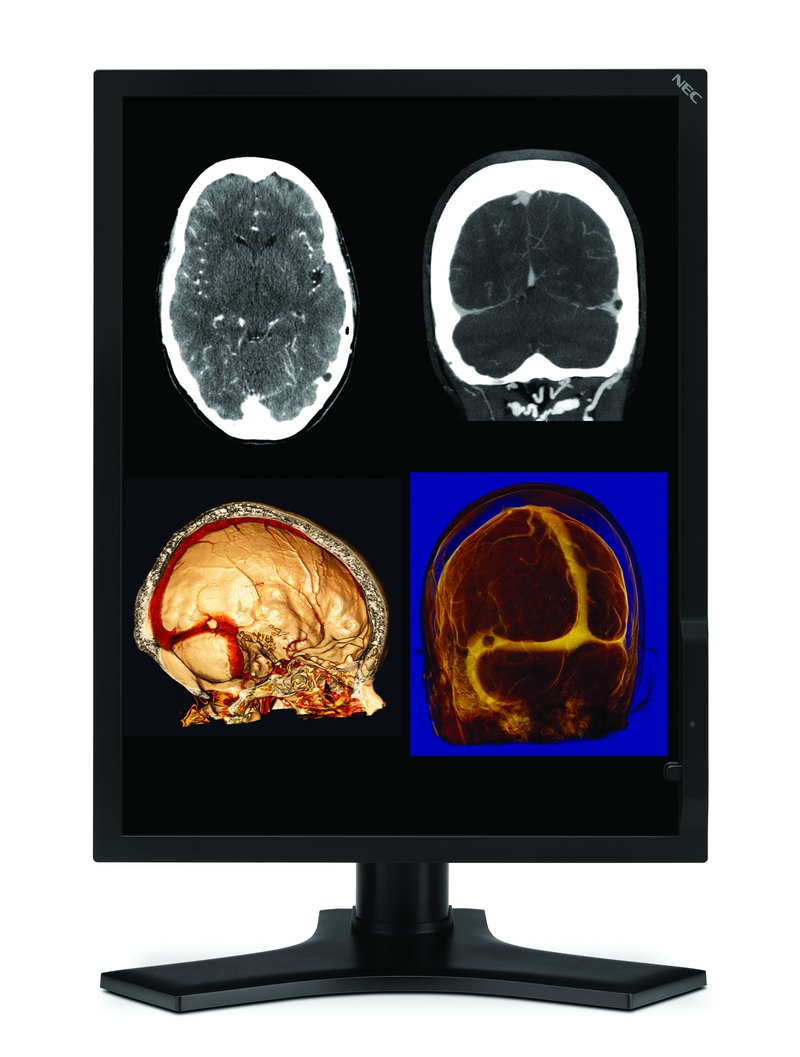

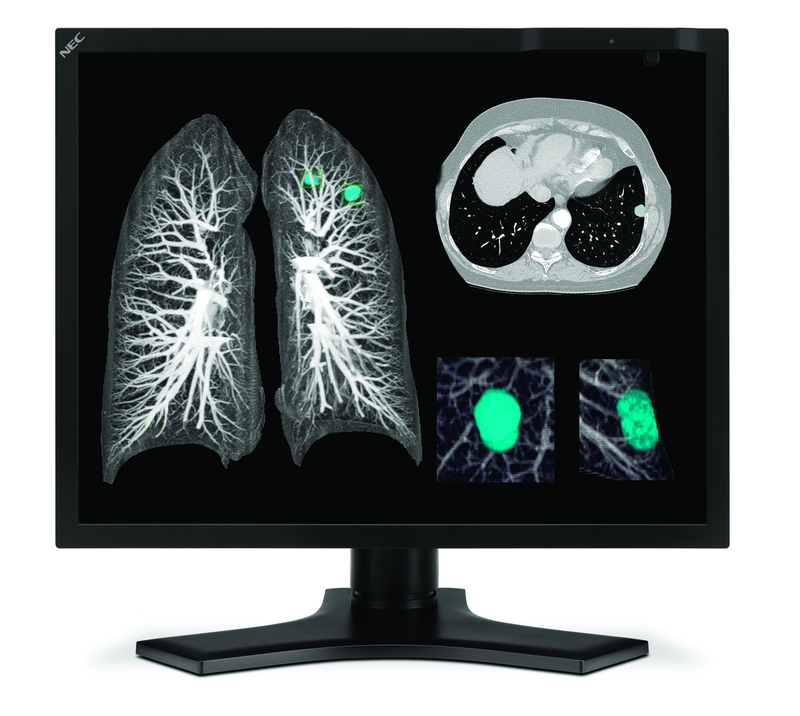

NEC 30" MultiSync Diagnostic Flat-Panel Monitor - MD212MC

NEC 30" MultiSync Diagnostic Flat-Panel Monitor - MD212MC

Designed for the demanding needs of medical imaging and PACS, the NEC MultiSync MD212MC, a 21.3" 2-Megapixel color display, features the flexibility of a color display with image performance rivaling that of grayscale displays.

• UA-SFT liquid crystal technology offers high brightness without compromising contrast or viewing angles, making the image quality outstanding for color or grayscale images
• Out-of-the-box calibration to the DICOM grayscale display function for luminance
• Integrated tri-stimulus (three-color) sensor receives more light information than standard (brightness only) sensors and, therefore, is extremely accurate and stable
• ColorCompTM digital uniformity correction reduces screen uniformmity errors and compensates for differences in color/grayscale and luminance across the entire screen
• GammaCompTM MD software, included with each display, ensures consistent image quality. The software provides a simple interface for conformance to the DICOM standard, while providing an easyto- use QA environment for medical imaging.
• 12-bit RGB lookup tables (LUTs) for gamma provide for more finely detailed, high-definition rendering of color images and crisper display of even the most delicate shadings and color differences
• Brightness level and contrast ratio rivaling that of grayscale displays

Display
Viewable Image Size 21.3"
Pixel Pitch 0.27mm
Pixels Per Inch 94
Brightness 400 cd/m2 max, 850 cd/m2 calibrated
Contrast Ratio 1050:1
Viewing Angle 178º Vert., 178º Hor. (89U/89D/89L/89R)@ CR>10
Response Time Rapid Response™ (20ms Gray-to-Gray)

Synchronization Range
Horizontal 31.5 - 91.1 KHz (Analog/Digital)
Vertical 50 - 85 Hz

Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Input Connectors DVI-D, DVI-I and VGA 15-pin D-sub
Native Resolution 1600 x 1200 @ 60 Hz landscape / 1200 x 1600 @ 60 Hz portrait

Power Consumption
On 100W
Power Savings Mode 2W

Dimensions (WxHxD)
Net (with stand) 18.4 x 17.1 - 23 x 12 in./ 467.8 x 434.3 - 584.3 x 306mm
Net (without stand) 18.4 x 14.2 x 4.4 in./467.8 x 361.6 x 110.7mm
Net Weight (with stand) 23.5 lbs. / 10.7 kg
Net Weight (without stand) 16.5 lbs. / 7.5 kg
VESA Hole Configuration Specifications 100 x 100mm

Environmental Conditions
Operating Temperature 5-35º C / 41-95º F
Operating Humidity 30-80%
Operating Altitude 3000m / 9842 ft.
Storage Temperature -10-60º C / 14-140º F
Storage Humidity 10-85%
Storage Altitude 12,192m / 40,000 ft.

Warranty 5 years parts and labor, including Advanced Overnight Exchange

Additional Features: Ultra-thin frame (bezel), VESA Mount, tilt, swivel, height-adjustable stand (5.9 in./150mm), pivot, vacation switch, 12-bit LUTs, black level adjustment, ColorComp uniformity correction, overdrive, Analog/Digital CableComp™, GammaComp™ MD software, standalone calibration, DICOM GSDF calibration, front sensor with automatic backlight feedback system, AmbiBright ambient light sensor
