Listen Technologies Navilution EVO Server - LN-100E

Description

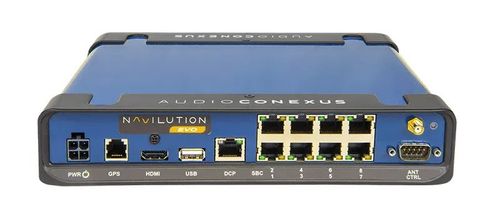

Navilution EVO Server

The Navilution EVO Server is a replacement or back-up server for Navilution EVO systems. Order this if you need to replace an EVO server or you want a spare or back-up server in case of failure. It does not include the Display Control Panel or GPS Receiver.

Includes

One (1) LN-100E Navilution EVO Server
One (1) LNA-041-WFA Listen Navilution WiFi Antenna SMA-Male
One (1) LNA-100-C5J Navilution EVO Jumper
One (1) LNA-100E-C5L Navilution EVO Loopback
One (1) LNA-043-MB Navilution Server Mounting Bracket
One (1) LNA-052-USB Navilution USB xxGB Flash Drive

Specifications

Physical
Dimensions (H x W x D)	44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.)
Unit Weight	1.72 kg (3.8 lbs.)
Shipping Weight	2.72 kg (6.0 lbs.)
Controls
IMP Switch	PA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu.
Indicators
Power / Status LED	Solid Green under normal operation. Flashes Green when uploading tours or firmware updates.
SBC Port 1-8 Amber LED	Flashing Amber, data transfer.
SBC Port 1-8 Green LED	Solid Green, physical link established.
DCP Port Green LED	Solid Green, physical link established. Flashing Green, data transfer.
Interconnections - Rear Panel
Power	Molex CONN HEADER R/A 4POS 5.7MM, 24Vdc at 16 amps under max load, 12Vdc at 13 amps under max load.
GPS	RJ-11, Dedicated connection to LN-050-GPSR GPS receiver.
HDMI	(High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments.
USB	Type A 2.0 female
DCP	RJ-45, Dedicated port for LN-075-DCP Display Control Panel connection.
SBC	RJ-45, Dedicated power and data ports for SBC loom connection.
ANT	SMA Antenna, Female for Wifi Control.
CTRL	DB-9 Male D-Sub Connector. Control port for Track Advance Switch connection.
Interconnections - Front Panel
Audio Inputs	RCA: 4 analog mono, unbalanced inputs.
Mic A	Female XLR, 1/4" Phone combo jack, unbalanced.
Mic B	Female XLR, 1/4" Phone combo jack, unbalanced.
12V2A Power Out	2 Pin Molex, Dedicated port for LN-075-DCP power.
PA Outputs	RCA: 2 analog, mono, unbalanced outputs.
Audio - In
Nominal Level	-10dBu
Max Level	+13dBu
Noise Floor	-75dBu
Dynamic Range	88dB
Impedance	3K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Signal-to-Noise Ratio	65dB
Total Harmonic Distortion	< 0.05 @ 1KHz
Audio - Mic A & B
Nominal Level	-45dBu to -35dBu
Max Level	-19dBu
Impedance	100K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion	< 0.05 @ 1KHz
Audio - PA Out
Nominal Level	-22dBu
Max Level	-10dBu
Noise Floor	-69dBu
Dynamic Range	59dB
Frequency Response	+/-4dB from 20Hz to 15KHz
Total Harmonic Distortion	< 0.2% @ 1KHz
AC Power Supply
AC Power Supply Input	120 - 240VAC, 50/60Hz, 2.5A
AC Power Supply Output	24Vdc, 10A
Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Compliance	FCC, CE
DC Power Cable (LNA-040-PC)
Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Cable Length	183cm (72 in.)
Environmental
Temperature - Operating	0 C to +40 C (32 F to +104 F)
Temperature - Storage	-20 C to +50 C (-4 F to +122 F)
Relative Humidity	0 - 95%, Non condensing.
Compliance
Standards	FCC, IC, RoHS, TUV, CE
Server
Programming	Via Cloud Software: Navilution Cortex software for route building and content management.
Max Channels	63
Max SBCs (24VDC power)	40 max per loom pair, 150 max per server
Max SBCs (12VDC power)	34 max per loom pair, 100 max per server
Max SBCs (AC Supply)	40 max per loom pair, 90 max per server
Audio Media File Format	MP3, 128kbps, mono
Audio Bit Depth	16 Bit
Audio Sampling Rate	44.1KHz
Video Media File Format	MP4
Max Trigger points	120 per route
Wi-Fi Control	2.4GHz HTTP
