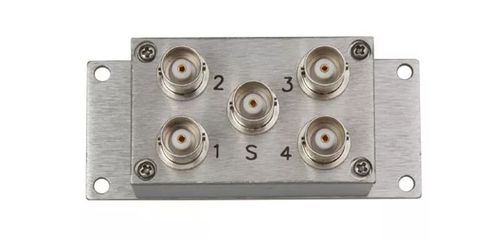

Listen Technologies 4-Way RF Antenna Combiner - LA-81

Listen Technologies 4-Way RF Antenna Combiner - LA-81

Part Number: LA-81
Our Price: $222.00
Availability: Usually ships the same business day
-
+

Description

4-Way RF Antenna Combiner

The LA-81 is a passive device (no power supply needed) that takes four (4) incoming RF signals and combines them into one (1) outgoing antenna source. The combiner is used in applications where up to four (4) different antenna sources are required and only one (1) antenna output is available or desired.

Key Features
  • Combines four (4) incoming RF signals and combines them into one (1) outgoing antenna source
  • Passive (no power supply needed)
  • Light weight
  • Works with 72 or 216 MHz
  • Mountable
  • Labeled for ease of use
Includes
  • One (1) LA-81 4-Way RF Antenna Combiner
  • One (1) Instruction sheet

Specifications

Interconnections
Connector/sBNC
RF
Frequency Range.025 to 250 MHz
Input/s4
Output/s1
Impedance50 Ohm
Power Loss3 dB for every two combined signals
Phase0
Input RF Power Rating1 W
Power
Power Supply TypePassive
Physical
Shipping Weight1 lb. (0.5 kg)
Dimensions (H x W x D)3.25 in. (82 mm) x 1.25 in. (32 mm) x 2.75 in. (69 mm)
Weight4.4 oz. (0.12 kg)
Environmental
Temperature - Operation-10 C (14 F) to +40 C (104F)
Temperature - Storage-55 C (-67 F) to +100 C (212 F)
Compliance
SafetyRoHS
