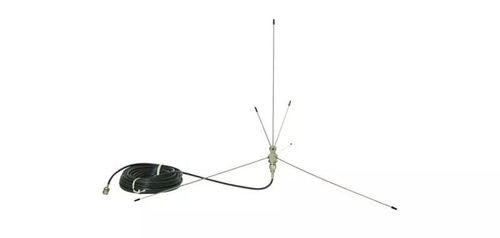

Listen Technologies Ground Plane Remote Antenna (216 MHz) - LA-107

Listen Technologies Ground Plane Remote Antenna (216 MHz) - LA-107

Part Number: LA-107
Our Price: $219.00
Availability: Usually ships the same business day
-
+

Description

Ground Plane Remote Antenna (216 MHz)

Thanks to its durable construction and design, the LA-107 Ground Plane Remote Antenna (216 MHz) is a great choice for use in high-wind environments or other difficult conditions. The LA-107 includes a U-bolt bracket for mounting to a conduit or pole, and it can be placed upright without the use of an external bracket.

Includes
  • One (1) LA-107 Ground Plane Remote Antenna (216 MHz)
  • 15.2 m (50 ft.) RG58, 50 ohm coaxial cable (PL-259 and BNC connectors)
  • Mounting hardware
Key Features
  • Durable ground-plane antenna designed for outdoor use
  • Range of up to 914 m / 3,000 ft.
  • Provides excellent coverage, even in adverse weather
  • Included U-bolt bracket for mast, conduit, or pole mounting

Specifications

Connector/s50 ohm BNC to the transmitter, PL-259 connector to the antenna
Frequency Range216.0125 - 216.9875 MHz
Number of Channels57 (19 wide band, 38 narrow band)
Antenna Type1/4 Wave Length
Unity Gain0 dB
Beam Width360º
Typical RangeRange of up to 914 m / 3,000 ft.
Height17.5 in. (68.6 cm)
MaterialMetal
Shipping Weight1 lb. (0.5 kg)
Diameter30.00 in. (76.0 cm)
Ground Radials Length13.50 (34.0 cm)
Base Length13.50 (34.0 cm)
Cable Length50 ft. (15.24 m)
Weight7.5 oz. (212 g)
