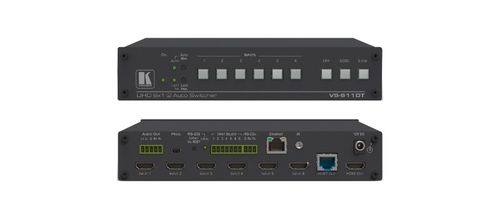

Kramer 6:1 4K auto switcher with HDMI and HDBT outputs - VS-611DT

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

6x1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT

VS?611DT is a high?performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher?priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

Key Features

Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
HDTV Compatible.
HDCP Compliant - Works with sources that support HDCP repeater mode.
HDMI Support - Deep Color, Ethernet, ARC, 7.1 PCM.
Step–in Master Support.
Automatic Input Detection & Selection.
Auto–Power Off - When no HDMI input for 30 seconds (selectable).
HDCP On/Off Switching.
EDID Configuration Options.
Selectable Switching - Manual or fast auto–switching according to last connected or preset priority.
Full HDBaseT Certification - Including bidirectional RS–232, Ethernet, IR and POE.
HDBaseT Extended Reach - Up to 100m at 4K@60Hz (4:2:0).
POE Source for HDBaseT Receivers.
Contact Closure - For remote manual switching override.
HDMI ARC De–Embedding - From output to balanced stereo audio line, uncompressed.
Firmware Upgrade - Over mini–USB, RS–232 or RJ–45 Web page.
Varied Control Options - Front panel keyboard, HDBaseT Ethernet, RS–232 local and over HDBaseT.
Built–in Web Server.
Software Support - For Protocol 3000, K–Router Plus, EDID Designer, K–Upload.

Specifications

INPUTS	6 HDMI connectors, 1 IR on a 3.5mm mini–jack
OUTPUTS	1 HDMI connector, 1 HDBaseT on an RJ–45 connector, 1 balanced stereo audio on a 5–pin terminal block
PORTS	1 Ethernet on an RJ–45 connector, 1 RS–232 connector on a 3–pin terminal block, 6 contact closures on a 7–pin terminal block,1 USB mini–A connector for firmware upgrading
MAX. DATA RATE	8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support
COMPLIANCE WITH HDMI STANDARD	Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC
OUTPUT RESOLUTIONS	Up to UXGA, 4K x 2K, 4K @60 4:2:0
CONTROL	Local: front panel keyboard, contact closure, HDBaseT local and over HDBaseT: RS–232, Ethernet, IR
SOFTWARE SUPPORT	Protocol 3000, K Router Plus, EDID Designer, K–Upload
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
POWER CONSUMPTION	12V DC, 750mA
INCLUDED ACCESSORIES	Power cord, rack ears
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	1.0kg (2.3lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.6kg (3.6lbs) approx.
