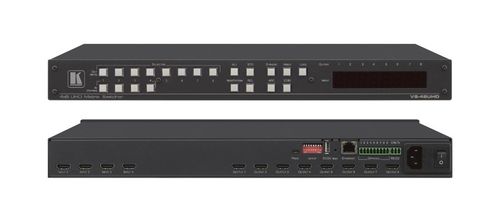

Kramer 4x8 4K UHD matrix switcher - VS-48UHD

Kramer 4x8 4K UHD matrix switcher - VS-48UHD

Part Number: VS-48UHD
Our Price: $3,108.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


4x8 4K60 4:2:0 Matrix Switcher

VS?48UHD is a high?quality 4x8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP?compliant sources (selectable) to any or all outputs simultaneously. VS?48UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x10 audio matrix.

Key Features
  • Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • Independent 12x10 Audio Matrix - With 4 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 2 ARC outputs.
  • Kramer Step–In Over HDMI Technology.
  • HDMI, HDCP and DVI Compliance.
  • Selectable HDCP Off per Input.
  • Memory Locations - 12 presets for quick access to common configurations.
  • Advanced EDID Management per Input.
  • Active Source & Acceptor Detection.
  • Automatic Input Selection - Based on priority selection or last connected input.
  • Firmware Upgrade - Via mini USB, Ethernet or the RS–232 port.
  • HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
  • Kramer reKlocking™ and Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Embedded Pattern Generator - With selectable patterns.
  • Lock Button - To prevent tampering.
  • Kramer Protocol 3000 Support.
  • Control Options - RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.
  • Size - Standard 19" (1U). Rack "ears" included.


INPUTS4 HDMI: On female HDMI connectors
OUTPUTS8 HDMI: On female HDMI connectors
PORTS1 Programming: On a Mini–USB connector
1 RS–232: On a 3–pin terminal block connector
1 Ethernet: On an RJ–45 connector
1 USB: On a USB–type A connector for powering an external device
VIDEOMax. Resolutions: 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
Standards Compliance: HDMI 1.4 and HDCP 1.4
Control: Front panel buttons, RS–232, Ethernet remote connection
POWERSource: 100–240V/50–60Hz
Consumption: 500mA
ENVIRONMENTAL CONDITIONSOperating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RH (non–condensing)
ACCESSORIESIncluded: Rack ears, power cord
PRODUCT DIMENSION19" x 9.34 x 1U (43.6cm x 23.72cm 4.36cm) W, D, H
PRODUCT WEIGHT2.4kg (5.3lbs) approx.
SHIPPING DIMENSION52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT3.3kg (7.3lbs) approx.
