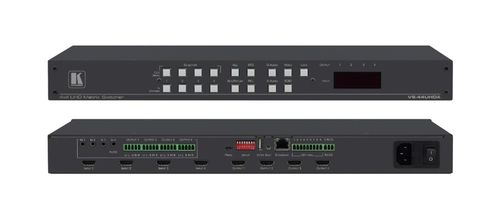

Kramer 4x4 4K UHD HDMI and Audio Matrix Switcher - VS-44UHDA

Kramer 4x4 4K UHD HDMI and Audio Matrix Switcher - VS-44UHDA

Part Number: VS-44UHDA
Our Price: $3,056.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


4x4 4K60 4:2:0 HDMI Matrix Switcher with Audio Embedding/De–embedding

VS?44UHDA is a high?quality 4x4 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded/de?embedded analog audio. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP?compliant sources (selectable) to any or all outputs simultaneously. The VS?44UHDA offers unmatched audio flexibility where any embedded digital or analog audio input can be routed to any embedded digital or analog audio output in addition to four ARC sources to produce an equivalent 12x12 audio matrix.

Key Features
  • Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
  • Max. Resolution - Up to 4K@60Hz UHD (4:2:0).
  • Independent Audio Matrix - With ARC support.
  • Audio Handling - Level & balance support with bass and treble adjustment.
  • Kramer Step–in Over HDMI Technology.
  • HDMI, HDCP and DVI Compliance.
  • Selectable HDCP Off per Input.
  • Memory Locations - Eight presets for quick access to common configurations.
  • Advanced EDID Management per Input.
  • Active Source & Acceptor Detection.
  • Automatic Input Selection - Based on priority selection or last connected input.
  • HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
  • Kramer reKlocking™ and Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Embedded Pattern Generator - With selectable patterns.
  • Lock Button - To prevent tampering.
  • Kramer Protocol 3000 Support
  • Firmware Upgrade - Via mini USB, Ethernet or the RS–232 port.
  • Control Options - RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.


INPUTS4 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks
OUTPUTS4 HDMI connectors, 4 balanced audio stereo output on a 5–pin terminal blocks (+4dBu nominal)
PORTS1 USB, 1 RS–232, 1 Ethernet, 1 USB for powering an external device
OUTPUT RESOLUTIONSUp to 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
CONTROLFront panel buttons, 7–segment display, AFV and breakaway buttons (VIDEO, A–AUDIO and D–AUDIO), STO–RCL, LOCK, PATTERN–MUTE buttons, RS–232, Ethernet Remote connection
POWER SOURCE100–240V AC, 50/60Hz, 50VA
OPERATING TEMPERATURE0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE–40° to +70°C (–40° to 158°F)
HUMIDITY10% to 90%, RH (non–condensing)
DIMENSIONS19" x 9.3" x 1U (W, D, H) rack mountable
WEIGHT1.85kg (4.10lbs) approx
SHIPPING DIMENSIONS52.5cm x 33cm x 10.7cm (20.7" x 13" x 4.2") W, D, H
SHIPPING WEIGHT2.9kg (6.4lbs) approx
INCLUDED ACCESSORIESRack ears, power cord
PRODUCT DIMENSION19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT1.9kg (4.1lbs) approx.
SHIPPING DIMENSION55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT2.9kg (6.4lbs) approx.
