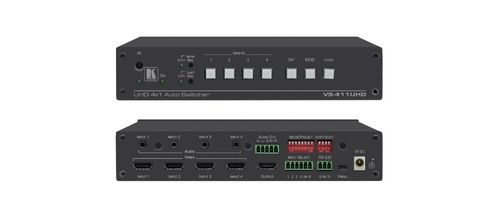

Kramer 4x1 4K60 4:2:0 HDMI Auto Switcher with Audio - VS-411UHD

Kramer 4x1 4K60 4:2:0 HDMI Auto Switcher with Audio - VS-411UHD

Part Number: VS-411UHD
Our Price: $660.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


4x1 4K60 4:2:0 HDMI Auto Switcher with Audio

VS?411UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. VS?411UHD automatically switches one of four HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher?priority video signal is detected. They also support Kramer's Step?in over HDMI technology.

Key Features
  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • Step–In Over HDMI Technology.
  • HDTV Compatible.
  • Active Switching - Selectable manual or fast auto switching according to last connected or preset priority.
  • Compliance - HDMI 1.4, HDCP and DVI 1.0.
  • HDMI 1.4 Support - Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
  • HDMI ARC De–embedding - From output to balanced stereo audio line, uncompressed.
  • Automatic Video Input Detection & Selection.
  • Auto Power Off - When no HDMI input for 10 seconds (selectable).
  • Selectable HDCP Switching.
  • EDID Configuration Options.
  • Default EDID.
  • Your location
  • Contact Closure - For remote manual switching override.
  • Audio Embedding/De–embedding.
  • Stereo Analog Audio Input Per Port.
  • Balanced Stereo Audio Output.
  • Lock Button - To prevent tampering.
  • Firmware Upgrade - Over RS–232, mini–USB.
  • Software Support - Protocol 3000, EDID Designer, K–Upload via RS–232.
  • Varied Control Options - Front panel buttons, contact closure, IR, RS–232 Protocol 3000.


INPUTS4 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks
OUTPUTS1 HDMI connector, 1 balanced stereo audio on 5–pin terminal block
PORTS1 RS–232 on a 3–pin terminal block, 1 mini USB for programming
COMPLIANCE WITH HDMI STANDARDHDMI 1.4, Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels, CEC
MAX DATA RATE8.91Gbps (2.97Gbps per graphic channel)
SUPPORTED RESOLUTIONSUp to 4K x 2K, 4K@60Hz (4:2:0)
CONTROLSFront panel buttons, contact closure, IR, RS–232 Protocol 3000
SOFTWARE SUPPORTProtocol 3000, EDID Designer, K–Upload
OPERATING TEMPERATURE0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE–40° to +70°C (–40° to 158°F)
HUMIDITY10% to 90%, RHL non–condensing
INCLUDED ACCESSORIESPower adapter, IR remote control
OPTIONSRK–1 19" rack adapter
PRODUCT DIMENSION21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT0.9kg (2.0lbs) approx.
SHIPPING DIMENSION35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT1.5kg (3.3lbs) approx.
