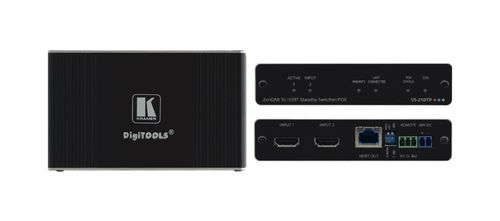

Kramer 4K60 4:2:0 2 HDMI to HDBT auto switcher, with PoE - VS-21DTP

Kramer 4K60 4:2:0 2 HDMI to HDBT auto switcher, with PoE - VS-21DTP

Part Number: VS-21DTP
Our Price: $556.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


2x1 4K60 4:2:0 HDCP 2.2 HDMI Auto Switcher with Bidirectional PoE over HDBaseT

VS?21DTP is a high?performance automatic switcher for 4K, HDBaseT, HDMI 1.4, HDCP 2.2 video signals. Offering priority and last?connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection. VS?21DTP is a PoE provider that provides power over Ethernet to compatible PoE receivers and it can also receive power from a compatible PoE provider.

Key Features
  • Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • HDMI 1.4 & HDCP 2.2 Compliant.
  • Supports up to 40m reach at 4K@60Hz (4:2:0).
  • Kramer Equalization and re–Klocking Technology.
  • HDTV Compatible.
  • 3D Pass–Though.
  • Bidirectional PoE over HDBaseT


INPUTS2 HDMI: On female HDMI connectors
OUTPUTS1 HDBT: On an RJ–45 connector
VIDEOMax. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
Max. Resolution: 4K@60Hz (4:2:0)
Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 1.4
USER INTERFACEControls: DIP–switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
Indicators: Active input, switching mode (Priority/Last Connected), PoE and ON
POWERSource: PoE over HDBaseT or 48V DC
Consumption: 390mA
IEC 60950–1(ed.2)
IEC 60950–1(ed.2)am1
IEC 60950–1(ed.2)am2
ENVIRONMENTAL CONDITIONSOperating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIESIncluded: 48V DC desktop power supply
Optional: RK–3T 19" rack adapter
PRODUCT DIMENSION12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT0.2kg (0.4lbs) approx.
SHIPPING DIMENSION15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT0.5kg (1.1lbs) approx.
