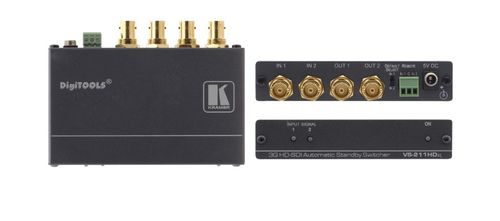

Kramer 2x1:2 3G HD-SDI Automatic Standby Switcher - VS-211HDXL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x1:2 SDI Auto Switcher

The VS?211HDxl is a high?performance automatic switcher for 3G HD?SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.

Key Features

Max. Data Rate - 3Gbps.
Multi–Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
HDTV Compatible.
Control - Contact closure or automatic switching.
Automatic Standby Switching - Switches from the secondary input to the primary input when a primary signal is detected.
Primary Input - Selectable.
Active Input LED Indicators.
Compact DigiTOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	2 SD/HD/3G HD–SDI video on BNC connectors
OUTPUTS	2 SD/HD/3G HD–SDI video on BNC connectors
MAX. OUTPUT LEVEL	800mVpp/75?
DATA RATE	Up to 2.97Gbps
CONTROLS	Contact closure remote control, input default selection switch
COUPLING	AC
POWER CONSUMPTION	5V DC, 400mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
