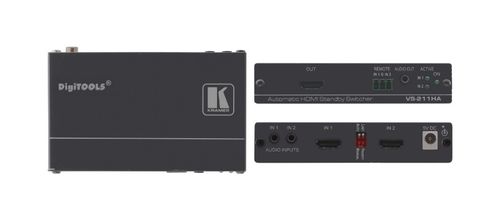

Kramer HDMI 1.3 auto switcher with analog audio switcher - VS-211HA

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x1 HDMI Auto Switcher with Audio

The VS?211HA is a high?performance automatic standby switcher for HDMI video and unbalanced stereo audio signals. The VS?211HA can be used as a manual 2x1 switcher or automatic switcher. The switcher uses a priority input or last connected input.

Key Features

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDMI & HDCP Compliant.
HDTV Compatible.
Advanced Auto Switching - Based on video clock detection.
Automatic Output Shutdown - If no input signal is detected after a configurable idle period.
3D Pass Through.
EDID PassThru - Passes EDID signals from display to source.
Audio Return Channel (ARC) Pass Through.
Parallel Unbalanced Stereo Audio Switching.
Contact Closure Remote Control - For manual switching override.
DIP–Switches - For setting the switching mode.

Specifications

INPUTS	2 HDMI connectors, 2 unbalanced stereo audio on 3.5mm mini jacks
OUTPUTS	1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack
MAX. DATA RATE	6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI and HDCP
CONTROLS	Contact closure on a 3–pin terminal block, 2 priority DIP–switches
INDICATORS	ON and active input LEDs
POWER CONSUMPTION	5V DC, 120mA (without load), 350mA (fully loaded)
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
