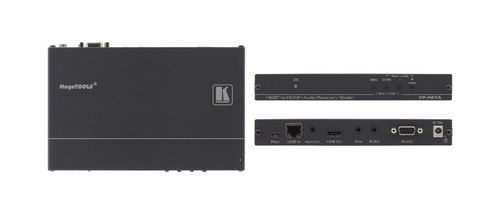

Kramer CV, PC and HDMI to DVI/HDMI scaler - VP-427A

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

HDBaseT to HDMI & Audio ProScale™ Receiver/Scaler

The Kramer VP?427A is a receiver/scaler for HDBaseT twisted pair, HDMI, bidirectional RS?232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI, IR and RS?232 signals. It up? or down?scales the picture to match the resolution of the HDMI monitor. It includes a simultaneous analog audio output of the embedded HDMI audio.

Key Features

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
Bidirectional RS–232 Port - For embedding/de–embedding control commands in the HDBaseT data stream.
Infrared Input and Output Ports - For controlling devices over the HDBaseT data stream.
System Range - Up to 70m (230ft).
Embedded Audio - Support for LPCM 2CH.
Analog Audio Output - Includes a simultaneous unbalanced stereo audio output of the embedded HDMI audio.
Constant Output Sync - Even when the input video signal is lost or interrupted.
ProcAmp Control - Contrast, brightness, fine tune & R, G, B level/gain.
On–Screen Display (OSD) - For easy setup and adjustment, accessible via the front–panel buttons.
Non–Volatile Memory - Saves final settings.
Freeze Button.
USB Port - For upgrading firmware.

Specifications

INPUTS	1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack
OUTPUTS	1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio on a 3.5mm mini jack
PORTS	1 bidirectional RS–232 port on a 9–pin D–sub connector
OUTPUT RESOLUTIONS	Native, 480p, 570p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x800, 1280x1084, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200
OUTPUT REFRESH RATE	60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
LATENCY	30ms approx
VIDEO COLOR DEPTH	Input: 8/10/12–bit, output: 8–bit
EMBEDDED AUDIO	Supports LPCM 2CH
RS-232 BAUDRATE	115200bps max
CONTROLS	Front panel buttons, 1 USB for programming
INDICATORS	ON LED
POWER CONSUMPTION	5V DC, 1.5A
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–T2B 19" rack adapter
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT	0.5kg (1.0lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT	1.0kg (2.2lbs) approx.
