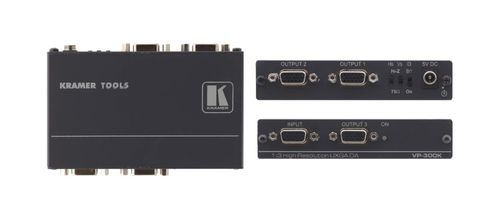

Kramer 1:3 Computer Graphics Video Distribution Amplifier - VP-300K

Kramer 1:3 Computer Graphics Video Distribution Amplifier - VP-300K

Part Number: VP-300K
Our Price: $188.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:3 Computer Graphics Video Distribution Amplifier

The VP?300K is a distribution amplifier for computer graphics signals with resolutions up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to three identical outputs.

Key Features
  • High Bandwidth - 400MHz (–3dB).
  • HDTV Compatible.
  • ID Bit Control.
  • Kr–isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
  • EDID PassThru - Passes EDID signal from display to source via output 1.
  • Selectable Sync Input Impedance - 75? (video), 510? (Graphics/TTL).
  • DC Coupling.
  • 3ft 15–pin HD Cable Included.

Specifications

INPUT1 UXGA on an 15–pin HD connector
OUTPUTS3 UXGA on 15–pin HD connectors
MAX. OUTPUT LEVEL2.2Vpp
BANDWIDTH (-3DB)400MHz
DIFF. GAIN0.03%
DIFF. PHASE0.03Deg
K-FACTOR<0.05%
S/N RATIO72dB @5MHz
CONTROLSID BIT switch
internal analog/TTL switches for setting the sync
COUPLINGDC
POWER CONSUMPTION5V DC, 130mA
INCLUDED ACCESSORIESPower supply (5V/2.6A), mounting bracket
OPTIONSRK–3T 19" rack adapter
PRODUCT DIMENSION12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT0.2kg (0.4lbs) approx.
SHIPPING DIMENSION23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT0.7kg (1.5lbs) approx.
