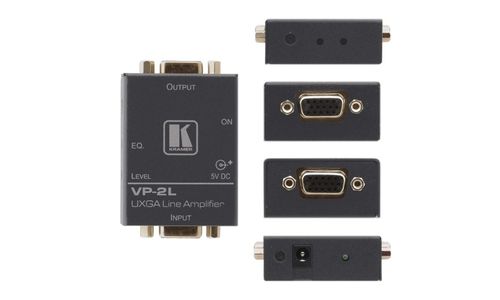

Kramer 1:1 Computer Graphics Video Line Amplifier - VP-2L

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:1 Computer Graphics Video Line Amplifier

The VP-2L is a high-performance line amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.

Key Features

Resolution up to UXGA.
HDTV Compatible.
Level (Gain) and EQ (Peaking) Controls - Recessed control trimmers to prevent tampering.
ID Bit Control.
Compact Size - Part of the Kramer TOOLS™ family of compact, high quality and cost effective solutions.

Specifications

INPUT	1 UXGA on a 15�pin HD (F) connector
OUTPUT	1 UXGA on a 15�pin HD (F) connector
MAX. OUTPUT LEVEL	1.5Vpp
RESOLUTION	Up to UXGA
DIFF. GAIN	2.7%
DIFF. PHASE	0.09Deg
K-FACTOR	0.1%
S/N RATIO	73dB
CONTROLS	Level: - 7.4dB to +4dB EQ.: 0 to +26.4dB
COUPLING	DC
POWER CONSUMPTION	5V DC, 307mA
INCLUDED ACCESSORIES	Power supply
PRODUCT DIMENSION	5.33cm x 7.30cm x 4.36cm (2.10" x 2.87" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.1lbs) approx.
SHIPPING DIMENSION	23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT	0.8kg (1.8lbs) approx.
