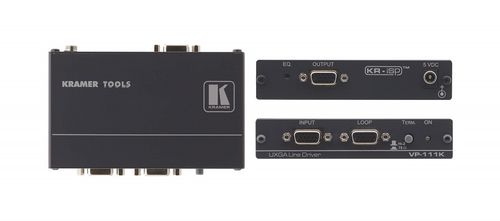

Kramer 1:1 Computer Graphics Video Line Amplifier - VP-111K

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:1 Computer Graphics Video Line Amplifier (500MHz)

The VP-111K is a high-performance line driver for signals exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.

Key Features

High Bandwidth - 500MHz (–3dB).
HDTV Compatible.
Looping Input.
Selectable Input Signal Termination.
EQ (Peaking) Control.
Kr–isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 UXGA with loop on a 15–pin HD connectors
OUTPUTS	1 UXGA on a 15–pin HD connector
MAX OUTPUT LEVEL	2.2Vpp
BANDWIDTH (-3DB)	500MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K-FACTOR	<0.05%
S/N RATIO	75dB
CONTROLS	EQ.: 0 to 10dB @50MHz
COUPLING	DC
POWER CONSUMPTION	5V DC, 114mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
