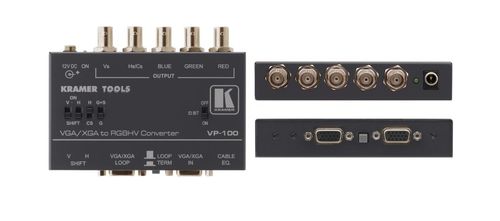

Kramer Computer Graphics Video to RGB/HV/S Format Converter - VP-100

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Computer Graphics Video to RGB/HV/S Format Converter

The VP-100 is a high-performance format converter for computer graphics video signals. It converts a computer graphics video signal on a 15-pin HD connector to either RGBS, RGsB, or RGBHV video signals on BNC connectors.

Key Features

High Bandwidth - 350MHz (–3dB).
Control - H/V sync shift & sync selection.
Looping Input.
Selectable Input Signal Termination.
ID Bit Control.
EQ (Peaking) Control.
Active Line Amplification Circuitry.

Specifications

INPUT	1 analog red, green, blue signals: 0.7Vpp/75?, H & V sync, TTL level, with loop on 15–pin HD (F) connectors
OUTPUTS	1 analog red, green (with or without composite sync), blue signals: 0.7 Vpp/75? H & V syncs: TTL level (Hi–Z load) or analog level (75? load) on BNC connectors 1 composite sync: TTL levels (Hi–Z load) or analog level (75? load)
VIDEO BANDWIDTH (-3DB)	350MHz
DIFF. GAIN	0.07%
DIFF. PHASE	0.03Deg
K-FACTOR	0.05%
VIDEO S/N RATIO	71dB
CONTROLS	Cable EQ, H & V sync shift, G/sync on green switch, Hs/Cs switch, ID bit switch, input termination switch
EQ. CONTROL	0 to +9.7dB @5MHz
POWER CONSUMPTION	12V DC, 60mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
PRODUCT WEIGHT	0.3kg (0.6lbs) approx.
