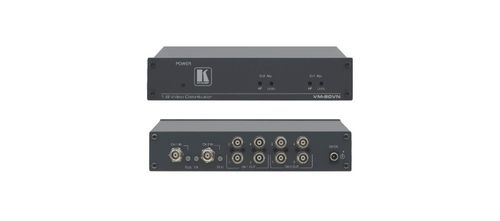

Kramer 1:8 Composite Video Distribution Amplifier - VM-80VN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:8 Video Distributor

The VM?80VN is a high?performance distribution amplifier for composite or SDI signals. It can also be configured as a 1:4 DA for s?Video (Y/C) signals and has controls to compensate for signal losses inherent in long cable runs.

Key Features

High Bandwidth - 330MHz (–3dB).
Level (Gain) and EQ (Peaking) Controls.
Dual–Mode - Configure as either a 1:8 (composite) or 1:4 (s–Video) DA.
Video AC/DC Coupling - Internally selectable.
Companion Unit to the VM–80A Audio DA.

Specifications

INPUTS	2 composite/SD–SDI video, 1Vpp/75? on BNC connectors with termination switches
OUTPUTS	2x4 composite/SD–SDI video, 1Vpp/75? on BNC connectors
MAX. OUTPUT	2Vpp
VIDEO BANDWIDTH (-3DB)	330MHz
DIFF. GAIN	0.12%
DIFF. PHASE	0.5Deg
K-FACTOR	<0.05%
S/N RATIO	74dB
CONTROL	75? termination switch, 1:8 or 2x1:4 selector switch
NON-LINEARITY	0.1%
COUPLING	DC or AC (internal selection)
POWER CONSUMPTION	12V DC, 50mA
INCLUDED ACCESSORIES	Power cord
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	1.0kg (2.1lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.4kg (3.0lbs) approx.
