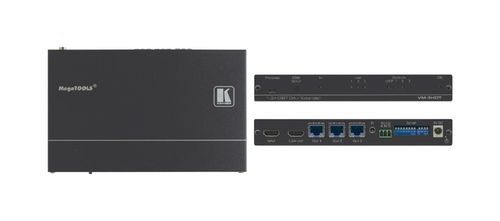

Kramer 1:3+1 4K60 4:2:0 HDMI to Long?Reach HDBT DA - VM-3HDT

Kramer 1:3+1 4K60 4:2:0 HDMI to Long?Reach HDBT DA - VM-3HDT

Part Number: VM-3HDT
Our Price: $1,032.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:3+1 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA

VM?3HDT is a high?quality, long?reach 1:3 HDBaseT extender distributor that takes one HDMI input, with IR and RS?232 control signals, converts it to an HDBaseT extension line signal and distributes it to 3 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP?580R. VM?3HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0), and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

Key Features
  • High Performance Distribution - Distributes one HDMI signal to three long–reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
  • Extension–line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • User–Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.

Specifications

INPUTS1 HDMI: On an HDMI female connector
OUTPUTS3 HDBT: On RJ–45 female connectors
1 Loop HDMI: On an HDMI female connector
PORTS1 IR: On a 3.5mm mini jack for IR link extension
1 RS?232: On a 3–pin terminal block for serial link extension
VIDEOMax. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
Max. Resolution: Up to 4K@60Hz (4:2:0) 24bpp
Standards Compliance: Supports HDMI 2.0, HDCP 1.4 and HDBaseT 1.0
EXTENSION LINEUp to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables)
Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)
USER INTERFACEControls: EDID setup button, 12 setup DIP switches
Indicator LEDs: Outputs, inputs, communication link and power
1 RS-232: On a Mini–USB female connector for firmware upgrade
POWERSource: 5.2V DC, 4A
Consumption: 5V DC, 2.1A
ENCLOSURESize: MegaTool
Type: Aluminum
Cooling: Convection ventilation
ENVIRONMENTAL CONDITIONSOperating Temperarture: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIESIncluded: Power supply
Optional: RK–T2B 19" rack adapter
PRODUCT DIMENSION18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT0.5kg (1.1lbs) approx.
SHIPPING DIMENSION34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT1.3kg (2.8lbs) approx.
