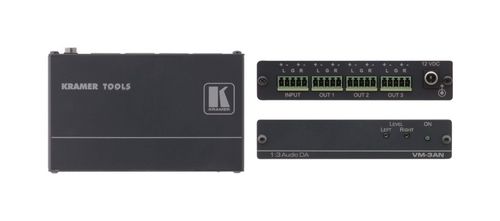

Kramer 1:3 Balanced Stereo Audio Distribution Amplifier - VM-3AN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:3 Balanced Stereo Audio Distribution Amplifier

The VM-3AN is a high-performance distribution amplifier for balanced stereo audio signals. The unit takes one stereo input and distributes the signal to three identical outputs.

Key Features

S/N Ratio - 90dB.
L & R Level (Gain) Controls.

Specifications

INPUT	1 balanced stereo audio on a 5�pin terminal block
OUTPUTS	3 balanced stereo audio on 5�pin terminal blocks
MAX. OUTPUT LEVEL	Audio: 18.5Vpp
BANDWIDTH (-3DB)	>100 kHz
S/N RATIO	90dB @1kHz
CONTROL	Output level control:�77 to +6dB, R+/�, L+/ - channels
AUDIO THD + NOISE	0.008%
AUDIO 2D HARMONIC	0.001%
POWER CONSUMPTION	12V DC, 89mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK�3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
