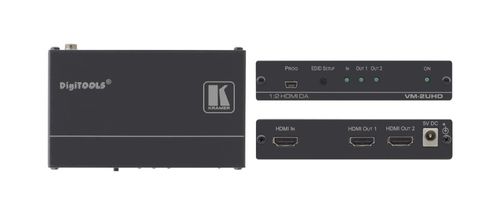

Kramer 1:2 4K HDMI Distribution Amplifier - VM-2UHD

1:2 4K60 4:2:0 HDMI DA

The VM?2UHD is a 1:2 distribution amplifier for 4K@60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to two identical outputs.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• Max. Resolution - 4K@60Hz (4:2:0).
• HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC (OUT 1 only), 2K, 4K, and 3D.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID selection, handling, locking, processing and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Field Maintenance - Mini–USB connection for simple field firmware upgrade with Kramer K–Upload tool, easy EDID handling with Kramer EDID–Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
