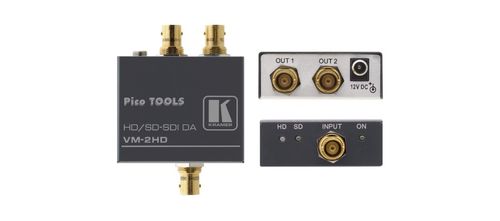

Kramer 1:2 HD-SDI Video Distribution Amplifier - VM-2HD

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 HD–SDI Video Distribution Amplifier

The VM-2HD is a high-performance distribution amplifier for HD-SDI signals. It takes one input, provides reclocking and equalization and distributes the signal to two identical outputs.

Key Features

Max. Data Rate - Up to 1.485Gbps.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M/344M) & HD–SDI (SMPTE 292M).
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HD–SDI & SDI Input Indication LEDs.
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

Specifications

INPUT	1 SMPTE–259M/292M/344M SDI, 75? on a BNC connector
OUTPUTS	2 equalized and reclocked SMPTE–259M/292M/344M outputs 75? on BNC connectors
MAXIMUM DATA RATE	1.485Gbps
MAX. OUTPUT LEVEL	800mVpp/75?
COUPLING	AC
POWER CONSUMPTION	12V DC, 250mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
