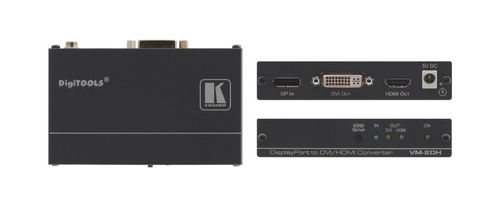

Kramer DisplayPort to DVI/HDMI Format Converter - VM-2DH

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

The VM-2DH is a converter for DisplayPort signals. The unit inputs a DisplayPort signal that it converts to HDMI and DVI outputs.

Key Features

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
Resolution - Up to WUXGA a 1080p.
HDTV Compatible.
HDCP Compliant.
I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Default EDID - For fast and efficient connection to the display.
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Standards Compliance - HDMI, HDCP, DDWG DVI 1.0.
Supports Up to 8 Embedded Audio Channels.
Compact DigiTOOLS® - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

INPUT	1 DisplayPort connector
OUTPUTS	1 DVI, 1.2Vpp on a 24–pin Molex female connector DDC signal, 5Vpp (TTL) 1 HDMI
STANDARDS COMPLIANCE	Supports DVI 1.1, HDCP and HDMI
RESOLUTION	Up to WUXGA (1920x1200), 1080p
MAX. DATA RATE	4.95Gbps (1.65Gbps per graphic channel)
CONTROLS	EDID button for selecting and storing EDID information
POWER CONSUMPTION	5V DC 800mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.2lbs) approx.
