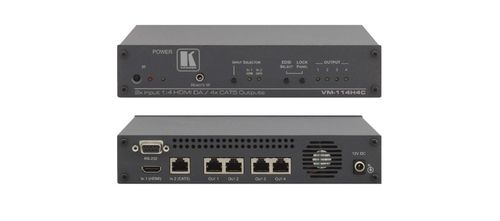

Kramer 2 Input 1:4 HDMI DA/4x CAT5 Outputs - VM-114H4C

Kramer 2 Input 1:4 HDMI DA/4x CAT5 Outputs - VM-114H4C

Part Number: VM-114H4C
Our Price: $1,436.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


2x1:4 HDMI & DGKat with RS–232 & IR to PoC Long–reach DGKat switchable DA

The VM?114H4C is a high?performance PoC switcher and distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals (HDMI or DGKat twisted pair) and distributes it to four DGKat twisted pair outputs.

Key Features
  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD (only on the TP inputs and outputs).
  • 3D Pass–Thru.
  • Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC–DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 50m (164ft) at 1080p on shielded BC–DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC–DGKat7a23 cable.
  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC–DGKat524, BC–DGKat623 or BC–DGKat7a23 cables. Note that the transmission range depends on the signal resolution, source device and display used. The distance using non–Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Active Input & Output LED Indicators.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
  • Flexible Control Options - Front panel buttons, RS–232, infrared control sensor, remote included.


INPUTS1 HDMI connector, 1 DGKat twisted pair on an RJ–45 connector
OUTPUTS4 DGKat twisted pairs on RJ–45 connectors
MAX. DATA RATE4.95Gbps (1.65Gbps per graphic channel)
CONTROLSInput select button, EDID select button, panel lock button
INDICATOR LEDSIR communication, power, IN 1 (HDMI), IN 2 (CAT 5), OUTPUT 1, 2, 3 and 4
INCLUDED ACCESSORIESPower supply, bracket installation kit, RC–IR3 infrared remote control transmitter
OPTIONSRK–1 19" rack adapter
PRODUCT DIMENSION21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT1.0kg (2.2lbs) approx.
SHIPPING DIMENSION35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT1.8kg (4.0lbs) approx.
