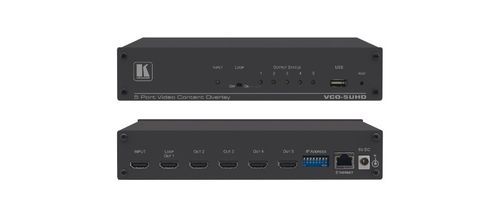

Kramer 5-Port 4K HDMI Video Content Overlay - VCO-5UHD

Kramer 5-Port 4K HDMI Video Content Overlay - VCO-5UHD

Part Number: VCO-5UHD
Our Price: $1,164.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


5–Port 4K60 4:2:0 HDMI Video Content Overlay Solution

VCO?5UHD is a video content overlay solution that overlays five independent graphic images to any number of displays over standard HDMI in resolutions up to 4K60 (4:2:0). This enables the display of individual, targeted messages for each and every display in your installation.

Key Features
  • 4K60 4:2:0 Overlays - Static or animated, dynamic color image.
  • Overlays Any Size Content - With full transparency control.
  • Multiple Overlay Templates - For multiple applications.
  • Selectable Looping Output - For daisy–chaining any number of displays.
  • Centralized Control of all Promotional Overlays.
  • Error Reporting - Comprehensive error reporting for connected displays and overlays.
  • Full Overlay Automation - Automates entire overlay process from design to display, in multiple locations.
  • Easy to Use - Feature–rich software - design, schedule, and display.
  • Enables Digital Signage with Unlimited Viewing Zones.


INPUTS1 HDMI: On a female HDMI connector
1 USB: On a female USB Type–A connector
OUTPUTS5 HDMI: On female HDMI connectors
1 Loop HDMI: On a female HDMI connector
PORTSEthernet 10/100BaseT: On an RJ–45 connector
VIDEOMax Resolution: 4K60 (4:2:0)
GENERALControls: IP address setup DIP–switches, Reset/Test button, Ethernet (VCO Setup App), output status indication LEDs, input indication LED, loop indication LED
POWERConsumption: 5V DC, 1.6A
ENVIRONMENTAL CONDITIONSOperating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIESIncluded: Power cord, rack ears, cable bracket, plastic cable ties
PRODUCT DIMENSION21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
SHIPPING DIMENSION35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
