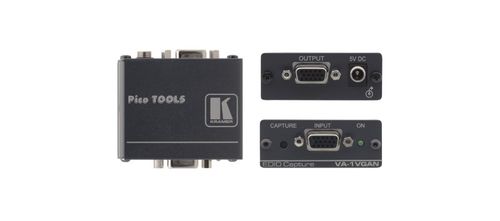

Kramer Computer Graphics Video EDID Emulator - VA-1VGAN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Computer Graphics Video EDID Emulator

The VA-1VGAN is an EDID emulator for computer graphics video signals. The unit can capture an EDID setting in non-volatile memory from the output allowing convenient and reliable connection to the source.

Key Features

Bandwidth - 1.8GHz.
Control - Capture button.

Specifications

INPUT	1 XGA input on a 15�pin HD (F) connector
OUTPUT	1 XGA output on a 15�pin HD (F) connector
MAX. OUTPUT LEVEL	>2Vpp
BANDWIDTH (-3DB)	1.8GHz
DIFF. GAIN	0.02%
DIFF. PHASE	0.02Deg
K-FACTOR	<0.05%
S/N RATIO	74dB @5MHz (unweighted: 66dB)
CONTROLS	Button for EDID capture
COUPLING	DC, direct wiring between input and output
POWER CONSUMPTION	5V DC, 20mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK�4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.9lbs) approx.
