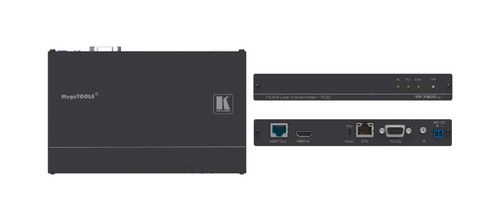

Kramer HDMI POE RS?232 ETH& IR over HDBaseT Twisted Pair Transmiter - TP-780TXR

Kramer HDMI POE RS?232 ETH& IR over HDBaseT Twisted Pair Transmiter - TP-780TXR

Part Number: TP-780TXR
Our Price: $472.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with Ethernet, RS–232 & IR over Extended–Reach HDBaseT

TP?780Txr is a high?performance, extended?reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, Ethernet, RS?232 and IR signals over twisted pair. The TP?780Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features
  • High Performance Standard Extender - Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. TP–780Txr is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi–channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
  • Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS–232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost–effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.
  • Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the optional RK–T2B rack adapter.

Specifications

INPUTS1 HDMI on an HDMI connector
OUTPUTS1 HDBT on an RJ–45 female connector
PORTS1 IR on a 3.5mm mini jack for IR link extension,
1 RS–232 on a 9–pin D–sub connector for serial link extension and device firmware upgrade,
1 10Base–T/100BaseTx Ethernet on an RJ–45 female connector for LAN extension
EXTENSION LINEHDBaseT 1.0 compliant
Up to 100m (330ft) at 4K @60Hz (4:2:0)
Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
Note: When using Kramer HDBaseT cables
VIDEOUp to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
HDMI 2.0 and HDCP 2.2 signal compliance
EXTENDED ETHERNETUp to 100Mbps extended line rate bandwidth
EXTENDED RS-232300 to 115200 baud rate
CONTROL RS-232115200 baud rate
POWER SOURCE48V DC, 1.36A
POWER CONSUMPTION48V DC, 280mA
ENCLOSUREMega Tools size, Aluminium type
COOLINGConvection ventilation
OPERATING TEMPERATURE0° to 40°C (32° to 104°F)
STORAGE TEMPERATURE–40° to +70°C (–40° to 158°F)
PRODUCT DIMENSIONS18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00") W, D, H
PRODUCT WEIGHT0.4kg (0.9lbs) approx
SHIPPING DIMENSIONS34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05") W, D, H
SHIPPING WEIGHT1.0kg (2.2lbs) approx
HUMIDITY10% to 90%, RHL non–condensing
INCLUDED ACCESSORIESPower supply 48V/1.36A, bracket installation kit
PRODUCT DIMENSION18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT0.4kg (0.9lbs) approx.
SHIPPING DIMENSION34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT1.0kg (2.2lbs) approx.
