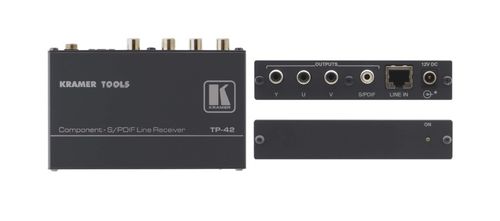

Kramer Component Video & S/PDIF Audio Twisted Pair Receiver - TP-42

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Component Video & S/PDIF Audio over Twisted Pair Receiver

The TP?42 is a twisted pair receiver for component video (YUV) and S/PDIF audio signals. The TP?41 transmitter converts component video (YUV) and S/PDIF audio signals into a twisted pair signal and the TP?42 converts the twisted pair signal back into component video (YUV) and S/PDIF audio signals.

Key Features

HDTV Compatible.
Max. Resolution - 1080i.
Level (Gain) and EQ (Peaking) Controls.
System Range - Up to 100m (320ft).
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.

Specifications

INPUT	1 RJ�45 CAT 5 shielded connector (line in)
OUTPUTS	1 set of component video (Y, U, V) on RCA connectors 1 S/PDIF (digital audio) on an RCA connector
MAX. OUTPUT LEVEL	Video: 2.1Vpp
MAX. RESOLUTION	1080i
DIFF. GAIN	0.15%
DIFF. PHASE	0.68Deg
K-FACTOR	0.8%
S/N RATIO	Video: 78dB Audio: 78.4dB
CROSSTALK (ALL HOSTILE)	Video: - 55dB Audio: - 50.5dB
CONTROLS	YUV level: - 0.7dB to +0.8dB YUV equalization: 0 to +7.5dB S/PDIF level: - 0.5dB to +1.2dB S/PDIF equalization: 0 to +7.8dB
COUPLING	DC
POWER CONSUMPTION	12V DC, 82mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK�3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
