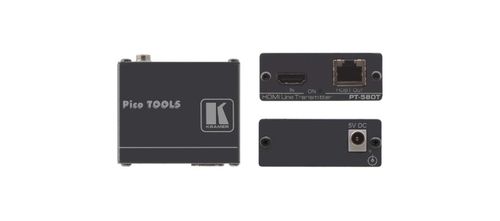

Kramer HDMI, Bdir. RS?232 & IR over HDBaseT/p Transmitter - PT-580T

Kramer HDMI, Bdir. RS?232 & IR over HDBaseT/p Transmitter - PT-580T

Part Number: PT-580T
Our Price: $252.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI HDCP 2.2 Compact Transmitter over Long–Reach HDBaseT

PT?580T is a compact high?performance, long?reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI signal over twisted pair. PT?580T converts the input signal into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features
  • High Performance Standard Extender - Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. PT–580T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi–channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
  • Cost–effective Maintenance - Status LED indicator facilitates easy local maintenance and troubleshooting.
  • Easy Installation - Compact Pico TOOLS™ fan–less enclosure for dropped–ceiling or discreet mounting, or side–by–side mounting of 4 units in a 1U rack space with the optional RK–4PT rack adapter.

Specifications

INPUT1 HDMI on an HDMI connector
OUTPUT1 HDBT on an RJ–45 female connector
EXTENSION LINEHDBaseT 1.0 compliant
Up to 40m (130ft) at 4K @60Hz (4:2:0)
Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
Note: When using Kramer HDBaseT cables
VIDEOUp to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
HDMI 2.0 and HDCP 2.2 signal compliance
POWER SOURCE5V DC, 2A
POWER CONSUMPTION5V DC, 570mA
ENCLOSUREPico Tools size, Aluminium type
COOLINGConvection ventilation
OPERATING TEMPERATURE0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE–40° to +70°C (–40° to 158°F)
HUMIDITY10% to 90%, RHL non–condensing
INCLUDED ACCESSORIESPower supply unit
PRODUCT DIMENSION6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT0.1kg (0.2lbs) approx.
SHIPPING DIMENSION15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT0.4kg (0.9lbs) approx.
