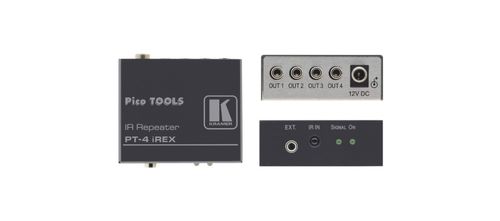

Kramer Infrared Repeater with External IR Sensor Input - PT-4IREX
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
IR Repeater with External IR Sensor Input
The PT?4iREX is an infrared signal repeater that operates at distances of up to approximately 75m (240ft). It extends infrared signals in areas where there is no direct line?of?sight for normal infrared signal operation.Key Features
- Input - Built–in IR receiver and 3.5mm connector for external IR receiver at cable distances up to about 30m (100ft).
- Outputs - 4 outputs control up to 8 IR devices at cable distances up to approximately 75m (240ft).
- Signal Application - For use with all wireless IR signals (not hard–wired IR signals).
- Ultra–Compact Pico TOOLS™ - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
|INPUT||1 IR receiver|
|OUTPUTS||4 IR emitters on 3.5mm mini connectors|
|IR OPERATING FREQUENCY||38kHz +/–10%|
|EFFECTIVE OFF-AXIS ANGLE||120° max|
|POWER CONSUMPTION||12V DC, 95mA|
|OPERATING TEMPERATURE||0° to +40°C (32° to 104°F)|
|STORAGE TEMPERATURE||–40° to +70°C (–40° to 158°F)|
|HUMIDITY||10% to 90%, RHL non–condensing|
|INCLUDED ACCESSORIES||Power supply|
3.5mm to IR emitter control cable (C–A35/IRE–10)
0.9m external remote IR receiver
|OPTIONS||RK–4PT 19" rack adapter|
external IR receiver cables: C–A35M/IRR–3 and C–A35M/IRR–50
IR emitter cable: C–A35/2IRE–10 dual emitter
|PRODUCT DIMENSION||6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H|
|SHIPPING DIMENSION||15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H|
|SHIPPING WEIGHT||0.4kg (0.9lbs) approx.|
|PRODUCT WEIGHT||0.1kg (0.1lbs) approx.|
