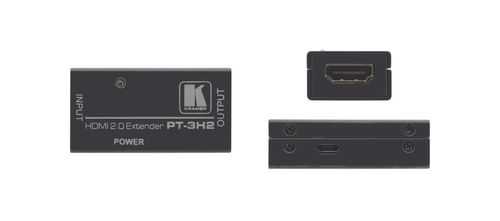

Kramer 4K HDMI repeater - PT-3H2

Kramer 4K HDMI repeater - PT-3H2

Part Number: PT-3H2
Our Price: $124.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K HDR HDMI Extender

PT?3H2 is a 4K HDR equalizer and line driver for HDMI 2.0 and HDCP 2.2 signals. The unit extends the range when using long HDMI cables.

Key Features
  • Max. Resolution - 4K@60Hz (4:4:4).
  • HDTV Compatible.
  • HDMI Standards Compliance - HDR10, HDCP 2.2, HDMI 2.0.
  • HDMI Support - ARC, CEC.
  • Range - 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4); 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0); 30m to input, 15m from output, total 45m (150ft) at 1080p60.
  • External Power Supply Option.

Specifications

INPUT/OUTPUTHDMI connectors
MAX. DATA RATE18Gbps (6Gbps per graphic channel)
MAX. RESOLUTIONUp to 4K@60Hz (4:4:4)
MAX. RANGE4K@60 4:4:4 - 20m (115ft); 10m to PT3H2, 10m to display
4K@60 4:2:0 / 4K@30 - 40m (130ft); 25m to PT3H2, 15m to display
1080p@60 - 45m (150ft): 30m to PT3H2, 15m to display
STANDARDS COMPLIANCEHDR10, HDMI2.0, HDCP2.2
HDMI SUPPORTARC, CEC
POWER CONSUMPTION5V DC, 150mA
OPERATING TEMPERATURE0C to +70C (32F to 158F)
OPERATING HUMIDITY10% to 85% RH (no condensation)
STORAGE TEMPERATURE10C to +80C (14F to 176F)
STORAGE HUMIDITY5% to 90% RH (no condensation)
EXTERNAL POWER SOURCE (OPTIONAL)5V, 150mA on microUSB connector
PRODUCT DIMENSION5.00cm x 2.60cm x 1.50cm (1.97" x 1.02" x 0.59" ) W, D, H
SHIPPING DIMENSION12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H
SHIPPING WEIGHT0.1kg (0.2lbs) approx.
