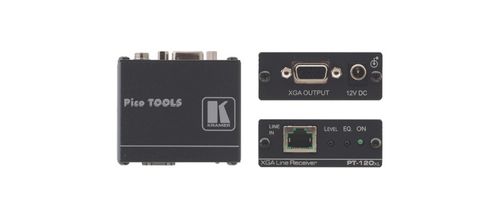

Kramer Computer Graphics Video over Twisted Pair Receiver - PT-120XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Computer Graphics Video over Twisted Pair Receiver

The PT-120xl is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a WP-110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.

Key Features

HDTV Compatible.
Max. Resolution - WUXGA & 1080p.
Level (Gain) & EQ (Peaking) Controls.
System Range - Up to 250m (820ft). Greater distances possible depending on signal resolution and cable.
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.

Specifications

INPUT	1 RJ�45 connector
OUTPUT	1 VGA/UXGA on a 15�pin HD connector
MAX. OUTPUT LEVEL	1.3Vpp
RESOLUTION	Up to WUXGA, 1080p
RANGE	Up to 250m (820ft)
S/N RATIO	Paired with PT�110xl, better than 70dB (worst case)
CONTROLS	Level: 0.7v to 1.3v, 300m EQ: 300m @120MHz
COUPLING	DC
POWER CONSUMPTION	12V DC, 350mA max
OPERATING TEMPERATURE	0� to +40�C (32� to 104�F)
STORAGE TEMPERATURE	�40� to +70�C (�40� to 158�F)
HUMIDITY	10% to 90%, RHL non�condensing
ACCESSORIES	Power supply
OPTIONS	RK�4PT 19�inch rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
