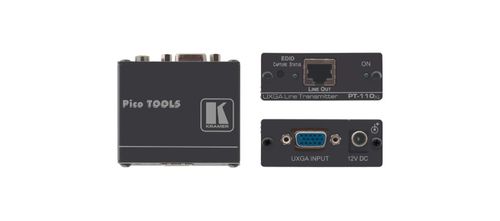

Kramer Extended Range Compu.Graphi Video over Twisted Pair Transmit - PT-110XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Computer Graphics Video over Twisted Pair Transmitter with EDID

The PT-110xl is an extended range UXGA line transmitter that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl or TP-120 receiver.

Key Features

Resolution - Up to WUXGA & 1080p.
HDTV Compatible.
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Extended Transmission Range - Up to 250m (820ft) when used with Kramer's twisted pair xl receivers (such as PT–120xl, TP–122xl or TP–126xl).
EDID Capture - Copies and stores the EDID from a display device.
Increased Noise Immunity - An increased level of protection against noise, spikes and interference in adverse environments.

Specifications

INPUT	1 VGA/UXGA on a 15–pin HD connector
OUTPUT	1 twisted pair on an RJ–45 connector
RESOLUTION	Up to WUXGA, 1080p
RANGE	Up to 250m (820ft)
S/N RATIO	Paired with PT–120xl, better than 70dB (worst case)
COUPLING	AC
POWER CONSUMPTION	12V DC, 285mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
