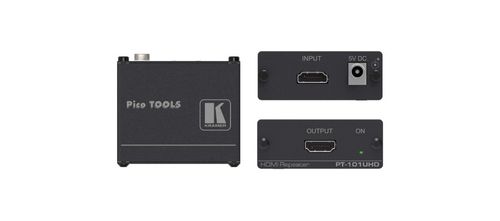

Kramer 4K HDMI range extender and reclocker - PT-101UHD

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI 2.0 HDCP 2.2 Repeater

PT?101UHD is a high?performance repeater/extender for 4K@60Hz (4:2:0) HDMI 2.0 and HDCP 2.2 signals. The unit can extend the range up to 20m (66ft) for 4K@60Hz (4:2:0) signals.

Key Features

Range Extension - 4K@30Hz (4:2:0) up to 20m (66ft) (15m on the input to the PT–101UHD and 5m on the output).
Max. Data Rate - 10.2Gbps (3.4Gbps per data channel).
Re–clocking and Equalization.
HDMI Output Power Follows Input - There is no power on the output when there is no active input.
Transparent HDMI 2.x and HDCP 2.2 Support.

Specifications

INPUT	1 HDMI on an HDMI connector
OUTPUT	1 HDMI on an HDMI connector
BANDWIDTH	Supports up to 10.2Gbps (3.4Gbps per graphic channel) supports up to 4K@60Hz (4:2:0) including WUXGA and 1080p 36–bit Deep Color
COMPLIANCE WITH HDMI STANDARD	HDMI 2.0, HDCP
INDICATORS	ON LED indicates power and/or HDMI signal
POWER SOURCE	5V DC, 230mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	RoHs and WEEE
INCLUDED ACCESSORIES	Power supply
OPTIONAL ACCESSORIES	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
