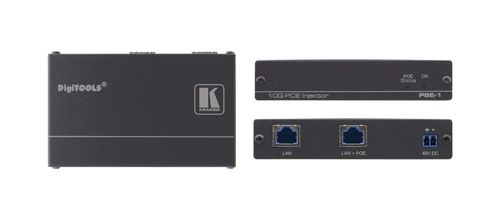

Kramer Single output POE supplier - PSE-1

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Single 10G HDBaseT & Ethernet Power Injector

The PSE?1 provides power remotely over Ethernet to any device capable of acting as a PoE acceptor (for example, a wallplate, where it may be difficult to connect an external power supply). This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.

Key Features

Total Range - Up to 100m (328ft) @4K on shielded BC–DGKat623 or BC–HDKat6a cable (or equivalent).
48V DC Power.

Specifications

INPUT/OUTPUT	1 HDBaseT/LAN + PoE on an RJ–45 connector, 1 HDBaseT/LAN on an RJ–45 connector
OPERATION BANDWIDTH	Up to 10.2Gbps (3.4Gbps per data channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI, HDCP
INDICATOR LEDS	ON, PoE STATUS
POWER SOURCE	48V DC, 630mA (device plus remote power sink)
POWER PROVISION	Up to 13W
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection, vents
ENCLOSURE TYPE	Aluminium
RACK MOUNT	With optional adapter
FURNITURE MOUNT	With included rubber feet
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE	CE, c–UL, UL
EMI/EMC REGULATORY COMPLIANCE	CE, C–tick, FCC Class A, ICES, KCC, VCCI
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
WARRANTY	7 years parts and labor
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.7kg (1.5lbs) approx.
