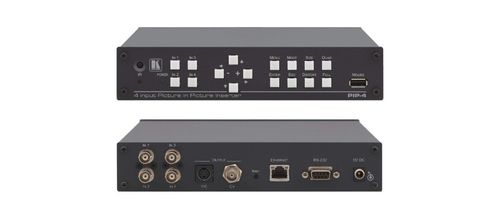

Kramer 4 Composite Video Picture?in?Picture Inserter - PIP-4

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4 Composite Video Picture–in–Picture Inserter

The PIP?4 is a high?performance picture?in?picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.

Key Features

Picture–In–Picture Options - All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
Multi–Format Operation - s–Video and composite video outputs.
Multi–Standard Operation - PAL & NTSC compatible inputs & outputs (no format conversion).
USB Mouse Connector - For convenient navigation and control, including the OSD.
Built–In ProcAmp - Brightness, contrast, and saturation for each input.
Flexible Control Options - Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.

Specifications

INPUTS	4 composite video, 1Vpp/75? on BNC connectors
OUTPUTS	1 s–Video, 1Vpp, 0.3Vpp/75? on a 4–pin connector 1 composite video, 1Vpp/75? on a BNC connector
DIGITAL RESOLUTION	10 bit
VIDEO BANDWIDTH	5.4MHz
K-FACTOR	0.9%
S/N RATIO	64dB
DIFFERENTIAL PHASE	0.8Deg
DIFFERENTIAL GAIN	1.1%
LUMA NON-LINEARITY	0.9%
CHROMA / LUMA DELAY	<15ns
Y/C SEPARATION	Adaptive 4–line digital comb filters
MEMORY	Non–volatile memory for storage of 2 setups
CONTROL	Front–panel, OSD, RS–232 and Ethernet video pane size and position video ProcAmp functions: video zoom, freeze
POWER CONSUMPTION	5V DC, 560mA
INCLUDED ACCESSORIES	Power supply, RC–IR3 Infrared Remote Control
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.9kg (2.0lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.5kg (3.3lbs) approx.
