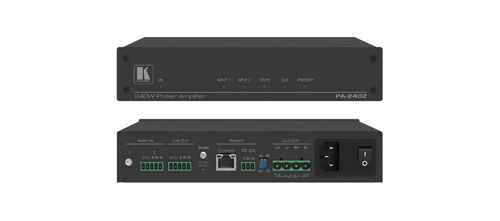

Kramer 1x240W @ 70V/100V And 2x120W @ 8? Controllable Power Amplif - PA-240Z
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Power Amplifier (1x240W @70V/100V & 2x120W @8?)
PA?240Z is a high?performance Hi?Z (70V/100V) and Lo?Z (4/8?) controllable power amplifier featuring balanced and unbalanced inputs and line?level output. This powerful amplifier is suitable for large?scale applications.
Key Features- Single Channel of 240W into a 70V/100V Line.
- 2 Channels of 120W into 4/8?.
- Balanced stereo line level output
- Individual inputs mix, EQ and HPF per output
- Built–in 3 band parametric EQ
- Auto–standby with adjustable threshold
- Controllable via RS–232 and IP
- Over current and over heat protections
Specifications
INPUTS | 1 unbalanced stereo on a 3.5mm connector 1 balanced stereo +4dBu/10k? on a 5 pin terminal block |
OUTPUTS | 1 balanced stereo line level on a 5–pin terminal block 1 stereo or 1 mono speaker output on a 4 pin large terminal block |
INPUT SENSITIVITY | Full power @ 0.3V (–10dBV) |
OUTPUT POWER | 2 x 120W @ 4? or 8? 1 x 240W @ 70V or 100V |
AMPLIFIER TYPE | Class D |
MAXIMUM VOLTAGE GAIN | 26dB SE / 32dB BTL |
DYNAMIC RANGE | 119dB |
FREQUENCY RESPONSE | 20Hz to 20kHz @ +/–1dB |
S/N RATIO | 80dB - 10dBV, 20 Hz - 20 kHz |
CONTROLS | Screw trimmer amplifier attenuator, IP and RS–232 |
AUDIO THD + NOISE | THD+N (1kHz @ 1W) 0.003 % |
AUDIO 2ND HARMONIC | 0.08% @ 75W RMS @ 4? 6.67kHz |
POWER SOURCE | Universal mains operational voltage 85VAC - 265VAC (full power at 120V - 230V) |
TOTAL SYSTEM EFFICIENCY | 89.5% |
INCLUDED ACCESSORIES | Power cord |
OPTIONS | RK–1 rack adapter |
PRODUCT DIMENSION | 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H |
PRODUCT WEIGHT | 0.9kg (2.1lbs) approx. |
SHIPPING DIMENSION | 40.50cm x 29.70cm x 9.00cm (15.94" x 11.69" x 3.54" ) W, D, H |
SHIPPING WEIGHT | 1.5kg (3.4lbs) approx. |
