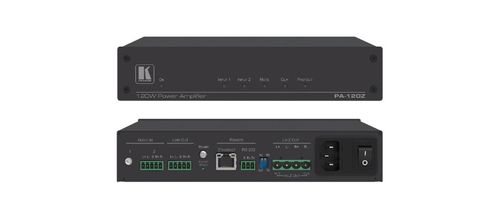

Kramer 1x120W @ 70V/100V And 2x60W @ 8? Controllable Power Amplifi - PA-120Z

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Power Amplifier (1x120W @70V/100V & 2x60W @8?)

PA?120Z is a high?performance Hi?Z (70V/100V) and Lo?Z (4/8?) controllable power amplifier featuring balanced and unbalanced inputs and line?level output. This versatile amplifier is suitable for a vast range of applications, including mid?size to large meeting rooms.

Key Features

Single Channel of 120W into a 70V/100V line
2 channels of 60W into 4/8?
Balanced stereo line level output
Individual inputs mix, EQ and HPF per output
Built–in 3 band parametric EQ
Auto–standby with adjustable threshold
Controllable via RS–232 and IP
Over current and over heat protections
Powerful, yet compact and lightweight

Specifications

INPUTS	1 unbalanced stereo on a 3.5mm connector 1 balanced stereo +4dBu/10k? on a 5 pin terminal block
OUTPUTS	1 balanced stereo line level on a 5–pin terminal block 1 stereo or 1 mono speaker output on a 4 pin large terminal block
INPUT SENSITIVITY	Attains full power @ 0.3V (–10dBV)
OUTPUT POWER	2 x 60W @ 4? or 8? 1 x 120W @ 70V or 100V
AMPLIFIER TYPE	Class D
MAXIMUM VOLTAGE GAIN	26dB SE / 32dB BTL
DYNAMIC RANGE	119dB
FREQUENCY RESPONSE	20Hz to 20kHz @ +/–1dB
S/N RATIO	80dB - 10dBV, 20 Hz - 20 kHz
CONTROLS	Screw trimmer amplifier attenuator, IP and RS–232
AUDIO THD + NOISE	THD+N (1kHz @ 1W) 0.003 %
AUDIO 2ND HARMONIC	0.08% @ 75W RMS @ 4? 6.67kHz
POWER SOURCE	Universal mains operational voltage 85VAC - 265VAC
TOTAL SYSTEM EFFICIENCY	89.2%
INCLUDED ACCESSORIES	Power cord
OPTIONS	RK–1 rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.9kg (2.0lbs) approx.
SHIPPING DIMENSION	40.50cm x 29.70cm x 9.00cm (15.94" x 11.69" x 3.54" ) W, D, H
SHIPPING WEIGHT	1.5kg (3.3lbs) approx.
