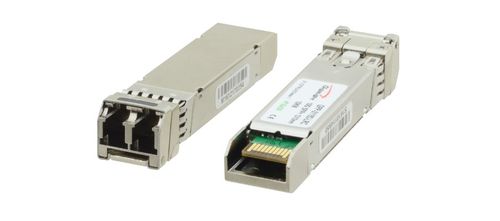

Kramer SM 10G 1310nm 10Km fiber SFP+ - OSP-SM10

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Optical SM 1310nm 10G SFP+ Transceiver

OSP?SM10 is a fiber optic transceiver for 1310nm single?mode signals. This standard pluggable SFP+ module has two LC connectors for reception and transmission signals over two strands of single?mode optical fiber.

Certified Transceiver - Kramer certified, hot–pluggable SFP+ optical module, for high–quality transmission of 10.2Gbps signal over single–mode fiber cables, connecting 2 simplex single–mode fiber strands via LC AP/UPC connectors.

Specifications

OPTICAL LINE	Single–mode G.652D compliant OFNR fiber
PORTS	2–strand fiber optic LC(PC/UPC) connector for reception and transmission SFP+ compliant pluggable interface Note: Do not use with LC(APC) connectors
MAX. REACH	33Km (20.5 miles) reach over OS1 SM fiber
NOMINAL PEAK WAVELENGTH	1310nm
MAX. DATA RATE	10.2Gbps
TRANSMITTER TYPE	DFB
OPTICAL TYPICAL TRANSMISSION POWER	–2.5dBm
OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY	–14.4dBm
OPTICAL TYPICAL MAXIMUM LOSS BUDGET	11.9dB
STANDARDS COMPLIANCE	IEEE 802.3ae, SFF–8431
LASER SAFETY COMPLIANCE	Laser Class I
REGULATORY CERTIFICATIONS	FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024
POWER CONSUMPTION	1W
OPERATING TEMPERATURE	0° to 70°C
STORAGE TEMPERATURE	–40° to 85°C
HUMIDITY	5% to 95% RH
