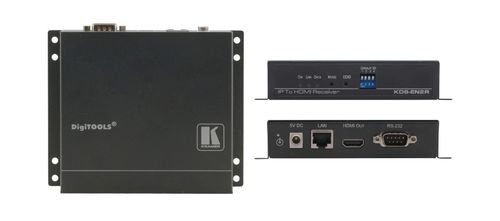

Kramer VIDEO DECODER JPEG 2000 - KDS-EN2R

HDMI over IP Receiver

The KDS?EN2R is an IP?based receiver for HDMI signals. Using JPEG2000 compression technology, the KDS?EN2R receives a visually lossless HD image with digital stereo over a 1000BaseT LAN from a KDS?EN2T transmitter for multicasting, video wall and digital signage applications.

• High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
• High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system, as well as over 200 receivers from each transmitter in multicasting mode.
• Multicasting and Broadcasting Architecture - Each channel requires about 55Mbps.
• Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
• HDTV Compatible.
• Controls - Group ID can be defined either via the built–in DIP–switches or by using the remote utility.
• RS–232 Pass–Thru - Controls the HDMI display from the transmitter side.
• Compact DigiTOOLS® - With a built–in mounting plate for versatile installation.
