Description

H.264 Decoder

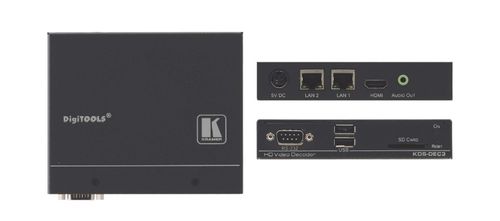

Kramer KDS?DEC3 is an H.264 decoder for encoded signals up to 1080p60. It is designed to work with the KDS?EN3 H.264 encoder to provide a high?quality and fully?featured end?to?end video and audio over IP solution.

Key Features

AVC Support - MPEG–4 using H.264 & AAC codecs.
Scaling & Cropping Features - For flexible display of source content on the decoder output.
Standard Ethernet Network Operation - 10/100/1000Mb.
Decoder–Integrated Network Switch - Allows for KDS–DEC3 daisy chaining and network extension.
Video Support - HDMI.
Audio Support - HDMI or analog.
Streaming Support - Unicast and multicast through RTSP (Real Time Streaming Protocol).
KDS–EN3 Manager Software - Allows remote management of the KDS–EN3 network including auto–detection and discovery of KDS–EN3/KDS–DEC3 units on a subnet.
Fail–safe Video Playback - When a decoder loses its connection to an encoder.
RS–232 Virtualization - From encoder to decoder.

Specifications

OUTPUTS	1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack
PORTS	2 Ethernet on RJ–45 connectors (fully switched), 1 RS–232 on a 9–pin D–sub connector
VIDEO SINGLE CHANNEL HD	Up to 1920x1080p60 and 1920x1200(60Hz)
COMPRESSION STANDARD	H.264/Mpeg4 Part 10 (AVC)
PROFILES	Baseline, Main, High
LEVELS	Up to 4.2
BIT RATES	100Kbps to 25Mbps 96, 128, 192, and 256Kbps
RATE CONTROL	CBR, VBR, adjustable GOP (Group Of Pictures) size
AUDIO COMPRESSION STANDARD	MPEG4 AAC–LC
CHANNELS	2 channel (stereo), HDMI with digital L–PCM audio
ANALOG SAMPLE FREQUENCY	32, 44.1, and 48kHz
OUTPUT RESOLUTIONS	1920×1200, 1920×1080, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, and 640×480
POWER CONSUMPTION	5V DC, 3A max
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
DIMENSIONS	23.2cm x 13.6cm x 10cm (9.1" x 5.4" x 3.9")
INCLUDED ACCESSORIES	Power supply, power cord, plastic bracket set
PRODUCT DIMENSION	21.50cm x 10.00cm x 2.60cm (8.46" x 3.94" x 1.02" ) W, D, H
PRODUCT WEIGHT	0.3kg (0.6lbs) approx.
SHIPPING DIMENSION	23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT	1.2kg (2.6lbs) approx.
